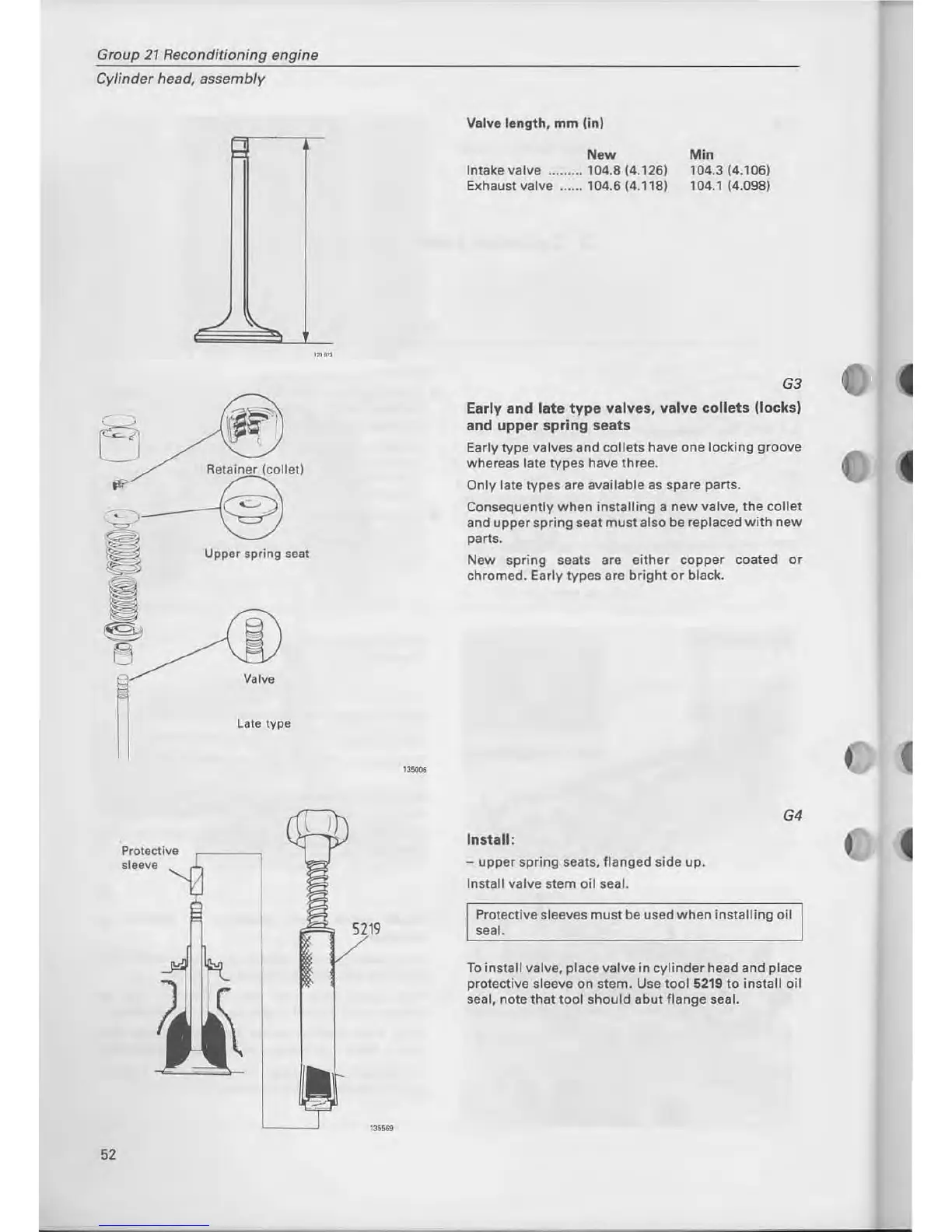

Group
21
Reconditioning engine
Cylinder head, assembly
B
""
--.::--,
~
~
'"
-
I
®
B
52
Proteclive
sleeve
~~
Retainer (collet)
~
Upper spring
seal
Valve
lale
type
Valve
length,
mm
(ini
Now
Intakevalve .........
104.8
(4.
126)
Exhaust valve ......
104.6
(4.118)
Min
104.3
(4.106)
104.1 (
4.098)
G3
Early
and
late
type
valves, valve
collets
(locks)
and
upper
spring
seats
Early typa valves and
co
llets have one 10cking groove
whereas late types have three.
On
ly
late types are available
as
spare parts.
Consequently when installing a
new
valve, the collet
and upper spring seat
must
also be replaced
with
new
parts.
New
spring seats are
either
copper coated
or
chromed. Early types are
bright
or
black.
Install:
- upper spring seats, fia ng ed side up.
Install valve stem
oil
sea
I.
G4
Protective sleeves
must
be used when installing
oH
seal.
To
install valve, place valve
in
cylinder
head and place
protective sleeve on stem. Use tool
5219
to
install oil
sea
I, note that tool should abut flange sea
I.
