Volvo D9 - Secondary Battery Connection; External Stop Interface

Connection for secondary battery

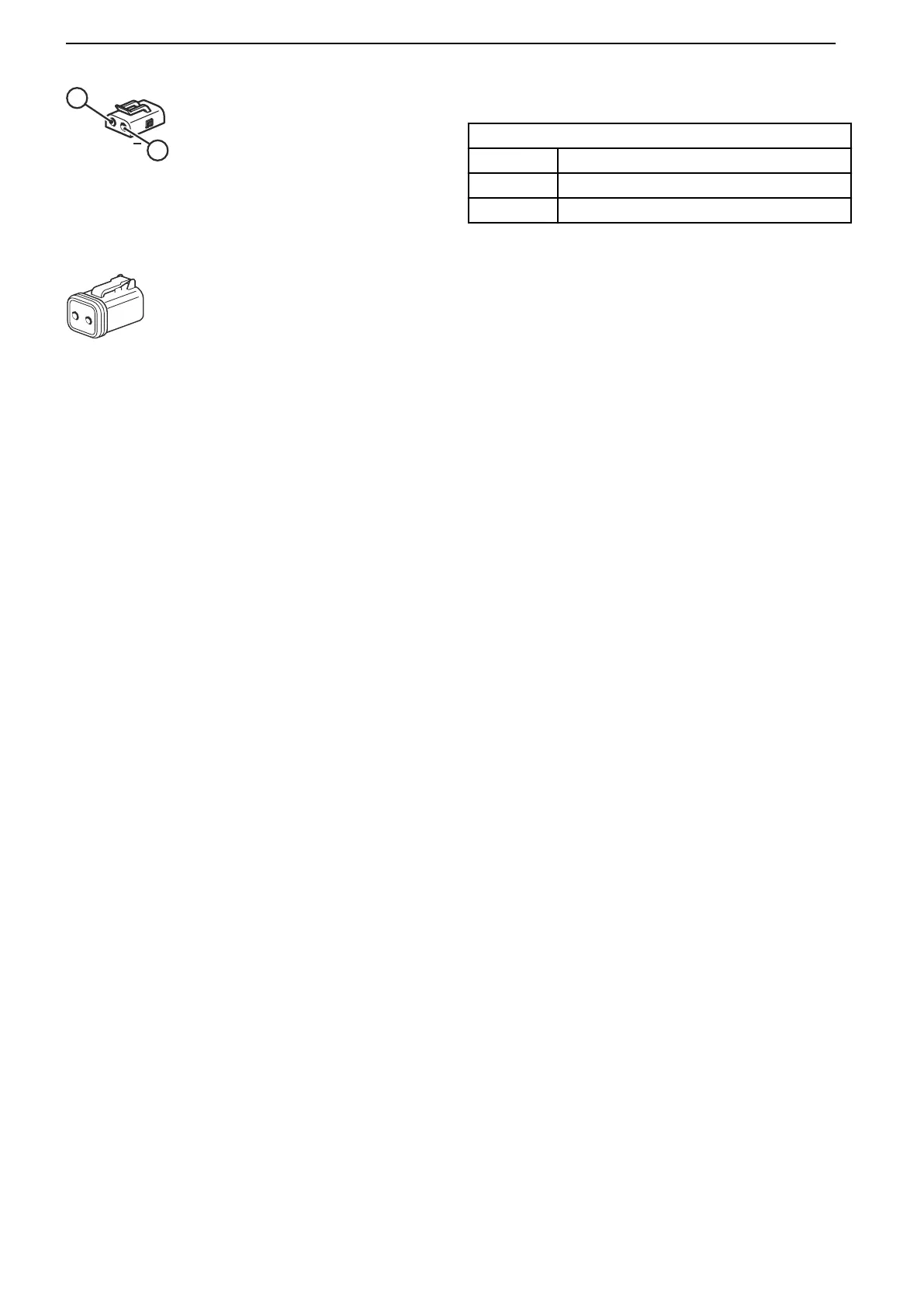

Engine 2-pin Deutsch connector
Pin Description
1 Battery + (fused 16A)
2 Battery –
External stop interface (Optional)
Engine 2-pin Deutsch connector
D9 and D16 engines: NO (normally open).
D13 can be ordered NO or NC (normally closed).
NO: External stop is triggered by the pins closure.
NC: External stop is triggered by opening of the circuit.
1
2
+
P0021264
Secondary battery interface female pin connector
P0021284
External stop interface female pin connector
Engine control interface, OEM interface
