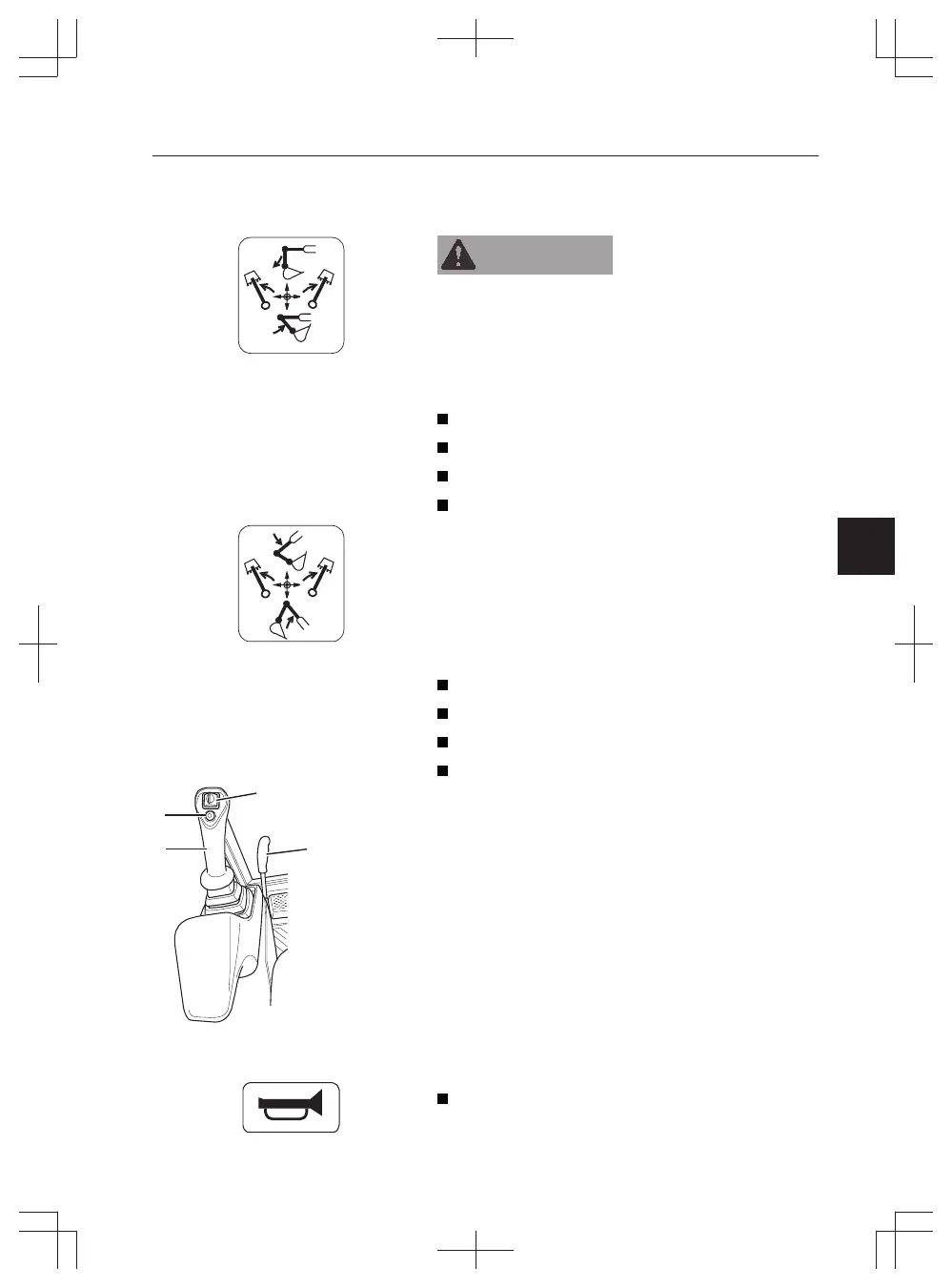

Volvo ECR50D - Left control lever for working equipment; Horn

1. Left control lever for working equipment
(ISO control pattern)
WARNING
Risk of serious accidents.
Unfamiliar control patterns could cause confusion
and accidents resulting in serious injury.
Use extreme caution when using the control levers
after changing the control pattern and until you
become familiar with the new pattern.
Lever forward: Extending the dipper arm.
Lever backward: Retracting the dipper arm.
Lever to the right: Slewing movement to the right.
Lever to the left: Slewing movement to the left.
Left control lever for working equipment (SAE
control pattern, optional equipment)
Lever forward: Boom down.
Lever backward: Boom up.
Lever to the right: Slewing movement to the right.
Lever to the left: Slewing movement to the left.
2. Horn
Button depressed: Horn signal.
ISO
(LH)
V1087059
STD
(LH)
V1087060
V1138042
3
4
1
2
Left hand control lever
V1090261
