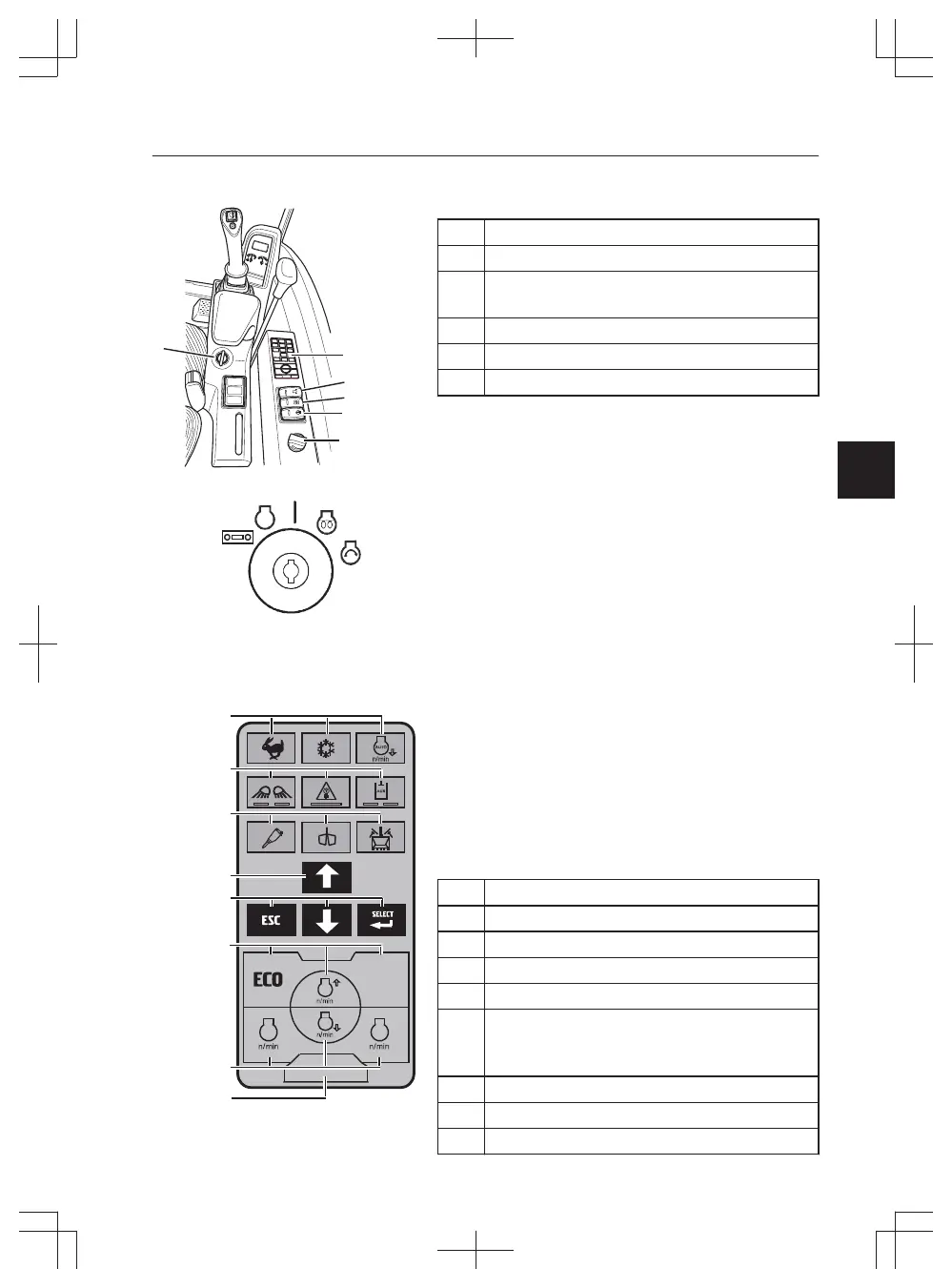

Instrument panel, right
1 Ignition switch
2 Keypad
3 Switch for rotating warning beacon (optional
equipment)
4 Switch for fan
5 Switch for windscreen wiper and washer
6 Temperature control (for air conditioning)
1. Ignition switch
The ignition switch is used for preheating and
starting. The ignition switch has five positions:
P: Radio and cab interior light
0: Engine off
1: Running position / Ignition
2: Preheating
3: Start the engine
2. Keypad
The keypad is used for the display unit and also to
directly control several functions. For information
about the display unit see page
28
.
NOTE!
The buttons with numbers (0–9) are also used to
enter the code for the anti-theft system.
1
Fast travel speed
2 Air conditioning
3 Auto idle
4 Working lamps: front and boom / rear
5 Overload warning
6 X3 setup (if option is installed)
or X1 setup 4 (if no X3 is installed on
machine)
7 X1 setup 1
8 X1 setup 2
9 X1 setup 3
