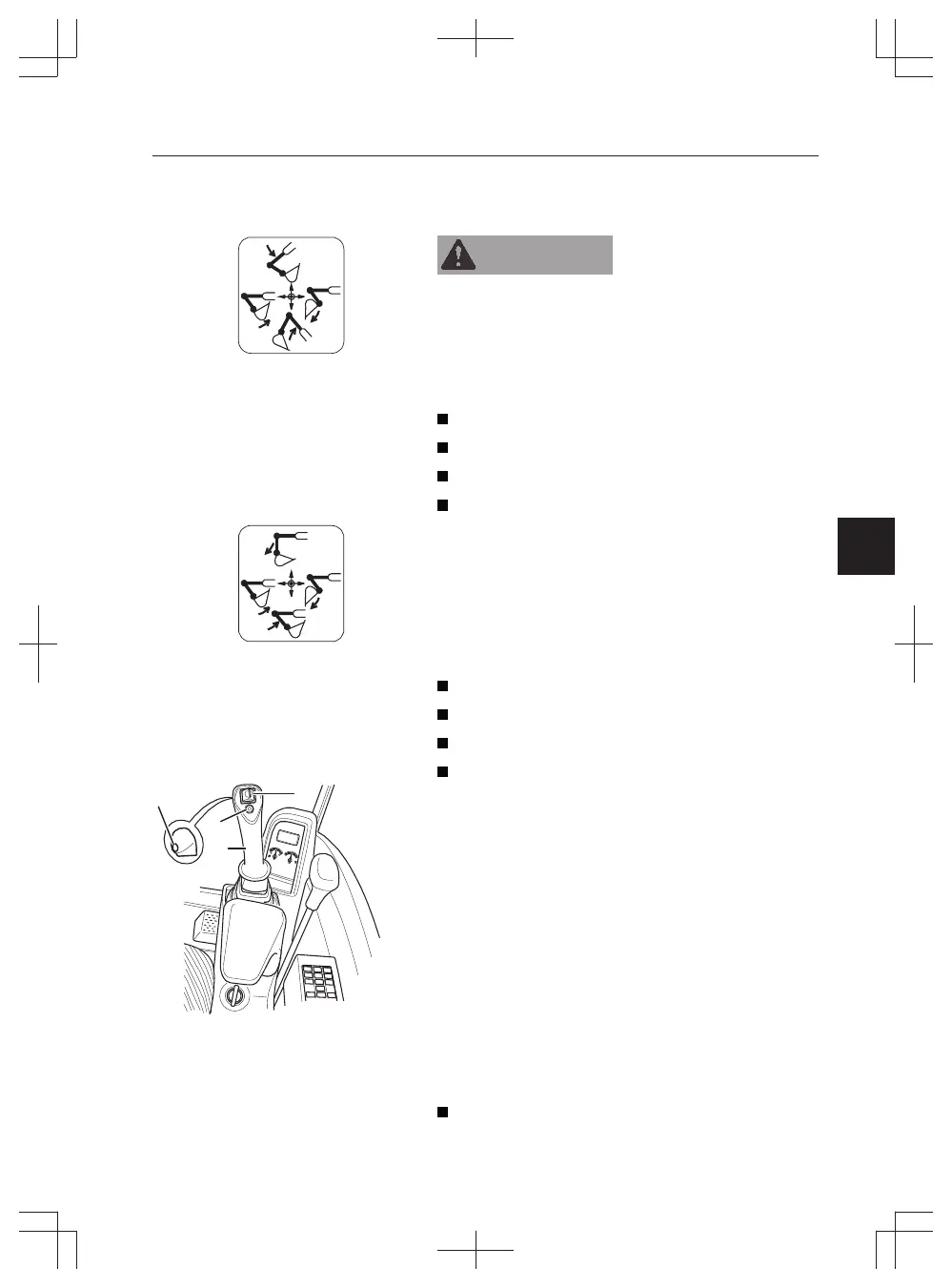

6. Right control lever for working equipment
(ISO control pattern)
WARNING
Risk of serious accidents.
Unfamiliar control patterns could cause confusion
and accidents resulting in serious injury.
Use extreme caution when using the control levers
after changing the control pattern and until you
become familiar with the new pattern.
Lever forward: Boom down.
Lever backward: Boom up.
Lever to the right: Empty the bucket (opening).
Lever to the left: Fill the bucket (closing).
Right control lever for working equipment
(SAE control pattern, optional equipment)
Lever forward: Extending the dipper arm.
Lever backward: Retracting the dipper arm.
Lever to the right: Empty the bucket (opening).
Lever to the left: Fill the bucket (closing).
7. Selector switch; offset boom or attachment
movement
When actuating this switch (2), the function of the
proportional roller on the right hand control lever
