Working under raised boom
Always secure the loader linkage with Support 999 3831 (2 pcs. L330, L350) before starting to work. Position the support on
an even and firm ground surface.

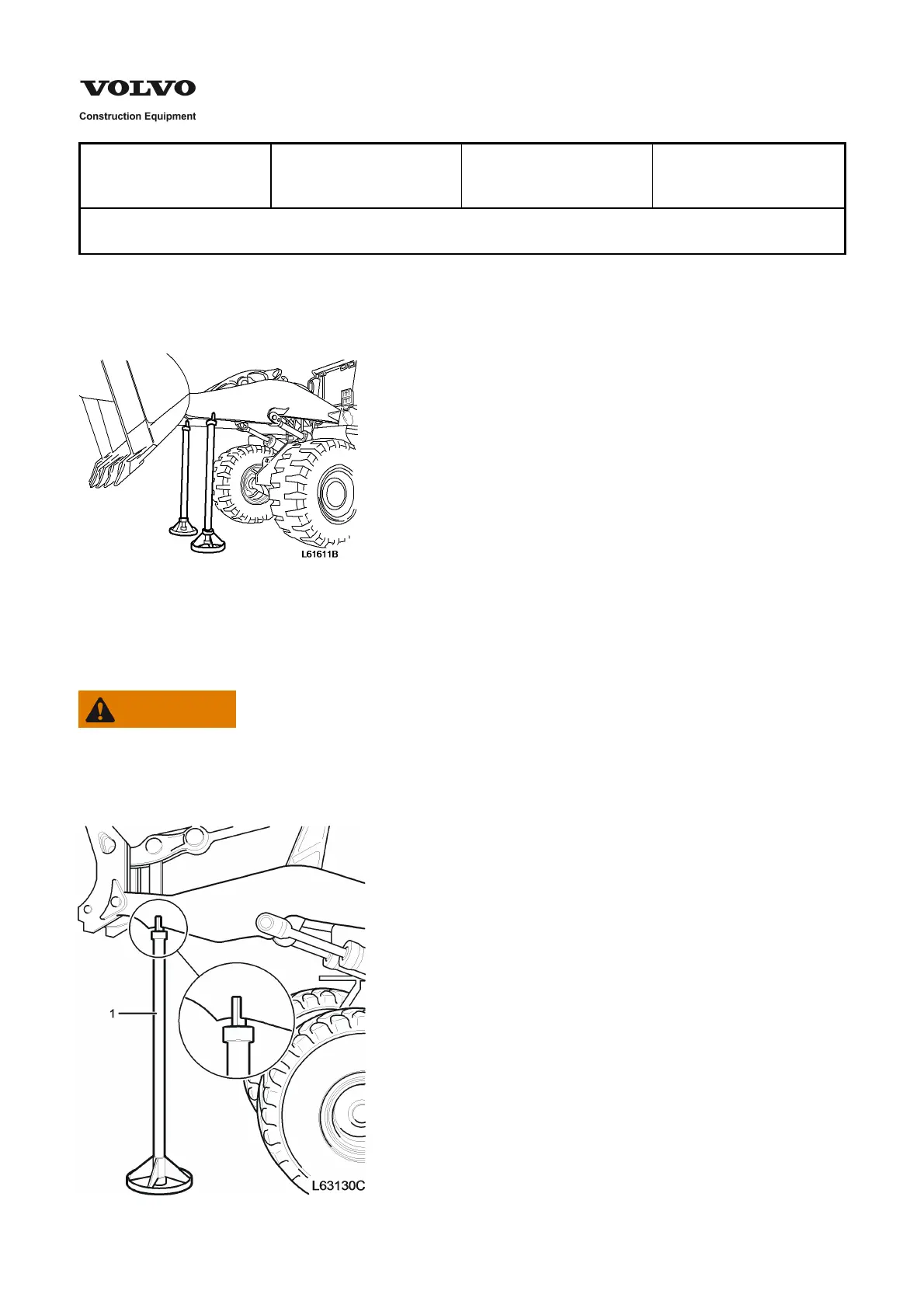

Figure 1
Securing the boom (L330, L350)
999 3831 Support (2 pcs.)
WARNING
Note the exact positioning of the support against the lifting arm!
If the support is positioned too far forward, it may be knocked out of position when the attachment bracket is tilted
forward.
