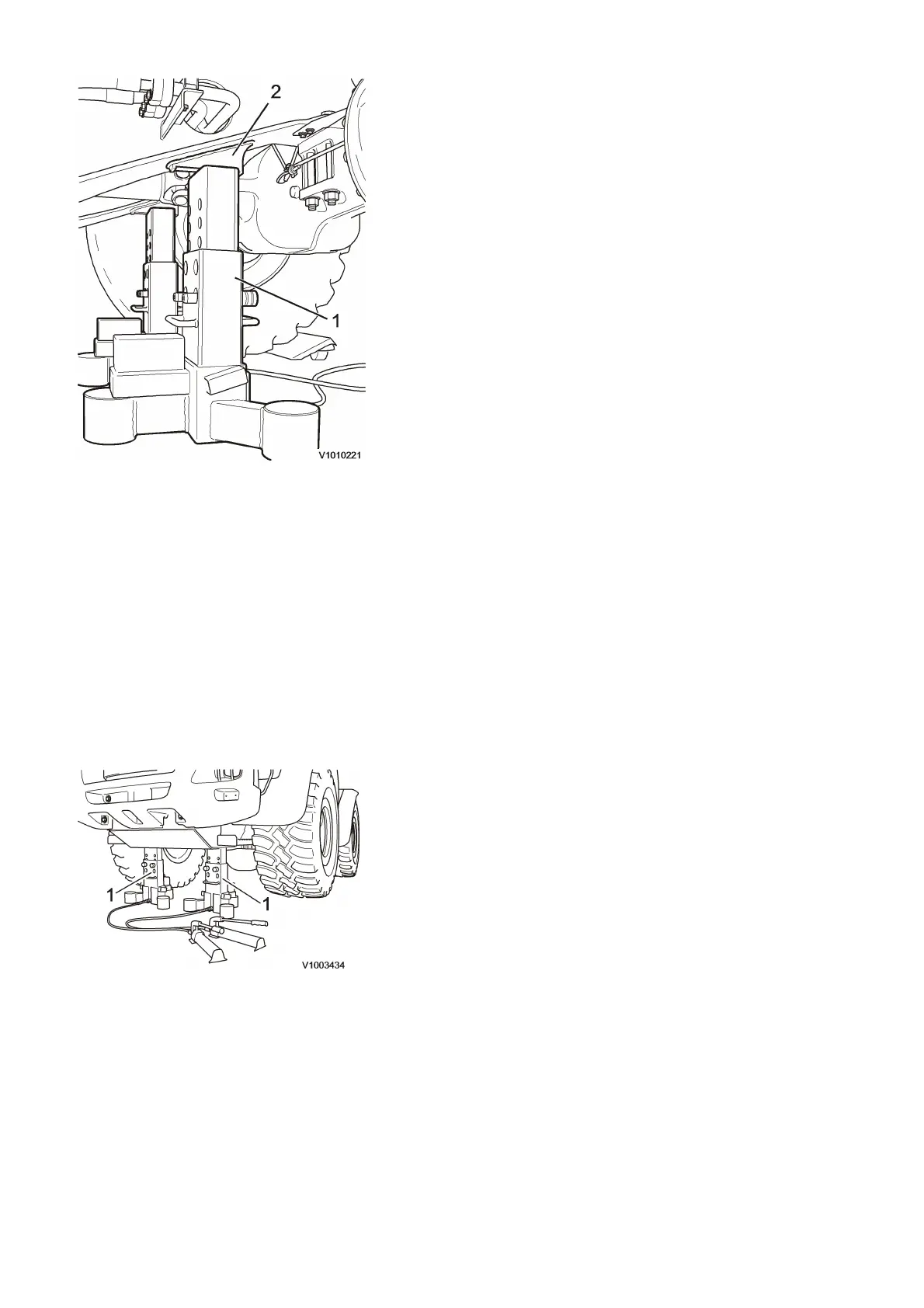

Figure 2
E-models
1.
2.
11668007 Stand jack
Support point
Recommended method for rear axle
Prevent the rear axle from oscillating by locking it with jacks or wooden blocks between the frame and axle on both sides.
NOTE!
Do not forget to remove the oscillation lock before lowering the machine.
The machine must be secured with axle stands or stand jacks with sufficient capacity, 5–15 tons.
Support on each side under the rear frame's edge (not the belly plate) on an even and sufficiently large surface, see example
in figure.
Figure 3
Support points
1. 11668007 Stand jack
With both wheels raised it is easier to rotate the hubs to get the wheel nuts in place.
Alternative method for rear axle
If there is no stand jack available, two garage jacks can be used instead (L150–L220).
NOTE!
Make sure that there is enough room for positioning axle stands.
