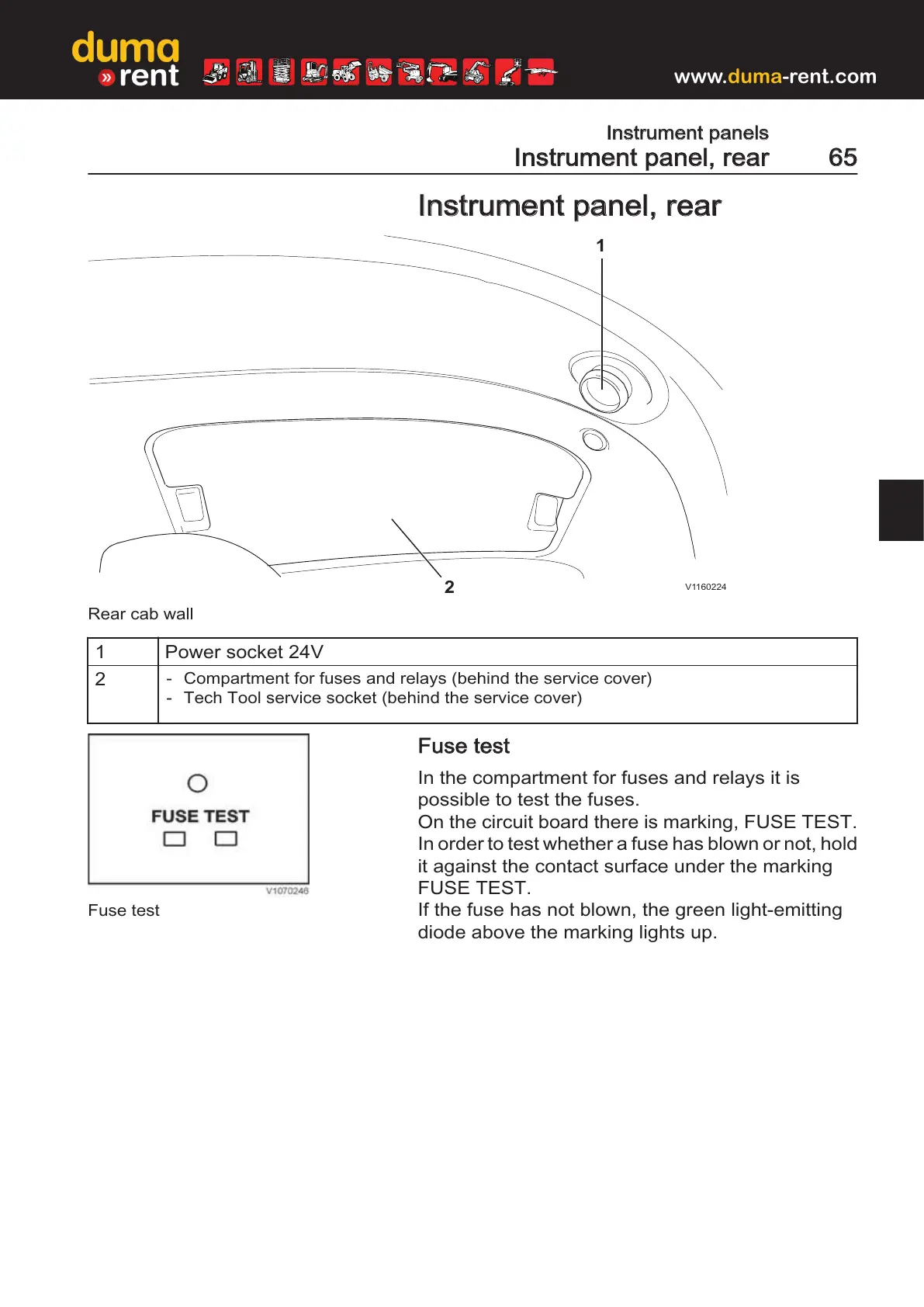

Rear cab wall
1 Power socket 24V
2
- Compartment for fuses and relays (behind the service cover)
- Tech Tool service socket (behind the service cover)
Fuse test
In the compartment for fuses and relays it is
possible to test the fuses.
On the circuit board there is marking, FUSE TEST.
In order to test whether a fuse has blown or not, hold
it against the contact surface under the marking
FUSE TEST.
If the fuse has not blown, the green light-emitting
diode above the marking lights up.
Fuse test
