Volvo S60 - Lamp Replacement - Dipped Beam; Lamp Replacement - Main Beam; Lamp Replacement - Extra Main Beam

10 Maintenance and service
10
350
* Option/accessory, for more information, see Introduction.

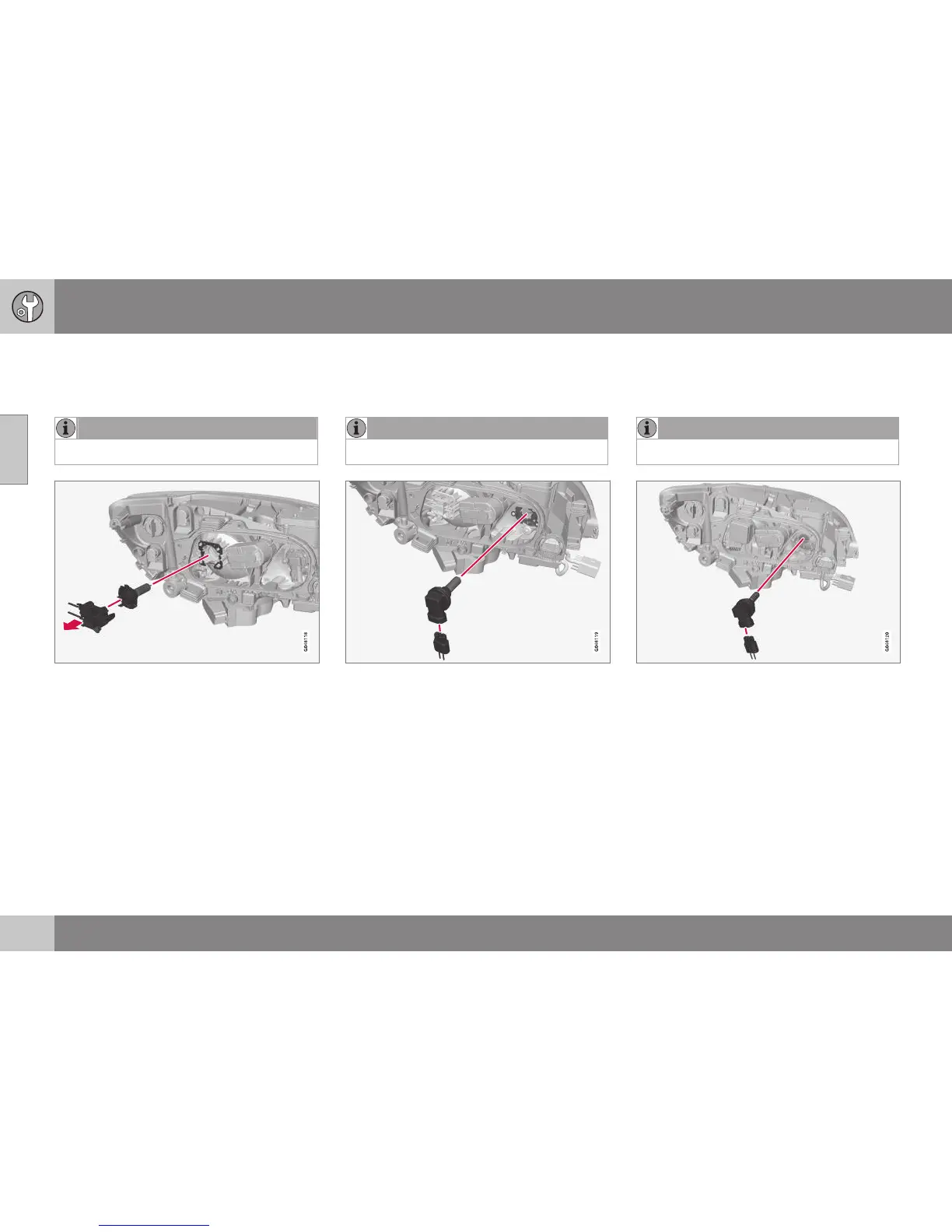

Lamp replacement - dipped beam
The dipped beam bulb is fitted inside the
headlamp's larger cover.
NOTE
Applies to cars with halogen headlamps.
1. Detach the headlamp (p. 348).
2. Remove the cover (p. 349).
3. Unplug the connector from the bulb.
4. Detach the bulb by pulling it straight out.
5. The guide pin on the lamp should be
straight up when it is fitted and a clicking
sound should be heard when it clicks into
place.
Reinstall the parts in reverse order.
Related information
•
Lamps - specifications (p. 353)
Lamp replacement - main beam
The main beam bulb is fitted inside the head-
lamp's larger cover.
NOTE
Applies to cars with halogen headlamps.
1. Detach the headlamp (p. 348).
2. Remove the cover (p. 349).
3. Detach the bulb by turning anticlockwise
and then pulling straight out.
4. Unplug the connector from the bulb.
5. Replace the bulb and align it in the socket
and turn clockwise in order to secure it. It
can be secured in one position.
Reinstall the parts in reverse order.
Related information
•
Lamps - specifications (p. 353)
Lamp replacement - extra main beam
The extra main beam bulb is fitted inside the
headlamp's larger cover.
NOTE
Applies to cars with Xenon headlamps*.
1. Detach the headlamp (p. 348).
2. Remove the cover (p. 349).
3. Detach the bulb by turning anticlockwise
and then pulling straight out.
4. Unplug the connector from the bulb.
5. Replace the bulb and align it in the socket
and turn clockwise in order to secure it. It
can only be secured in one position.
Reinstall the parts in reverse order.
Related information
•
Lamps - specifications (p. 353)
