Lamp replacement - vanity mirror
lighting
The vanity mirror's lamps are fitted inside the
lamp lenses.

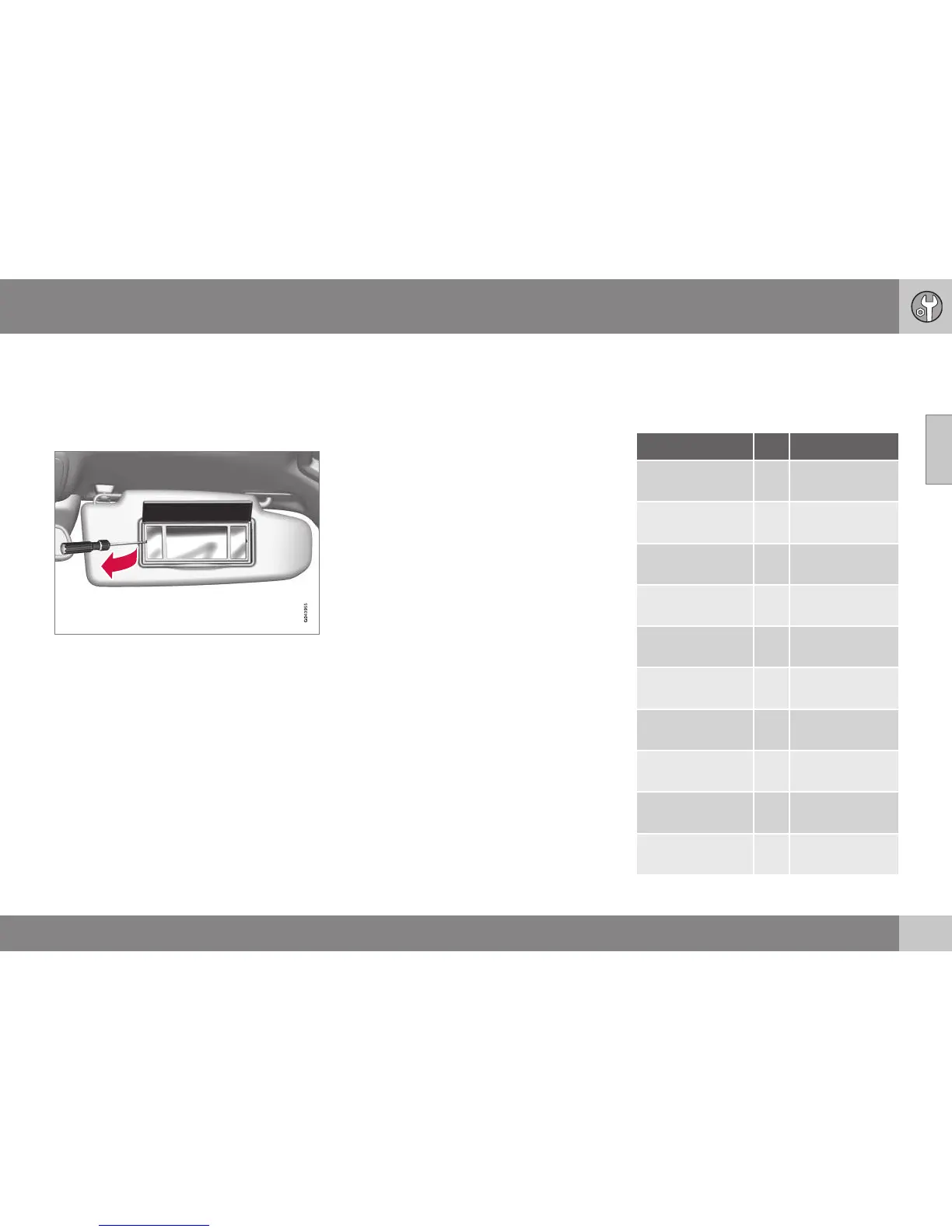

Removal of lamp lens
1. Insert a screwdriver under the lamp lens
and gently prize up the lug on the edge.
2. Carefully detach and lift aside the lamp
lens.
3. Use needle-nose pliers to pull the bulb
straight out to the side and replace with a
new one. Note! - Do not pinch hard with
the pliers. Otherwise the lamp lens could
then be crushed.
Attaching the lamp lens
1. Refit the lamp lens.
2. Press it into place.
Related information
•
Lamps - specifications (p. 353)
Lamps - specifications
The specifications apply to bulbs. When
replacing LED and Xenon lamps, please refer
to a workshop.
Lighting
W
A
Type
Dipped beam,
halogen
55 H7 LL
Main beam, Halo-
gen
65 H9
Extra main beam,
ABL
65 H9
Front direction
indicators
24 PY24W
Courtesy lighting
front
3 T10 Socket
W2.1x9.5d
Glovebox lighting 5 Socket SV8.5
Length 43 mm
Vanity mirror
lighting
1,2 T5 Socket
W2x4.6d
Cargo area light-
ing
10 Socket SV8.5
Length 38 mm
Number plate
lighting
5 C5W LL
Direction indica-
tors, rear
21 PY21W LL
