Component description Group 30: Electrical system
12

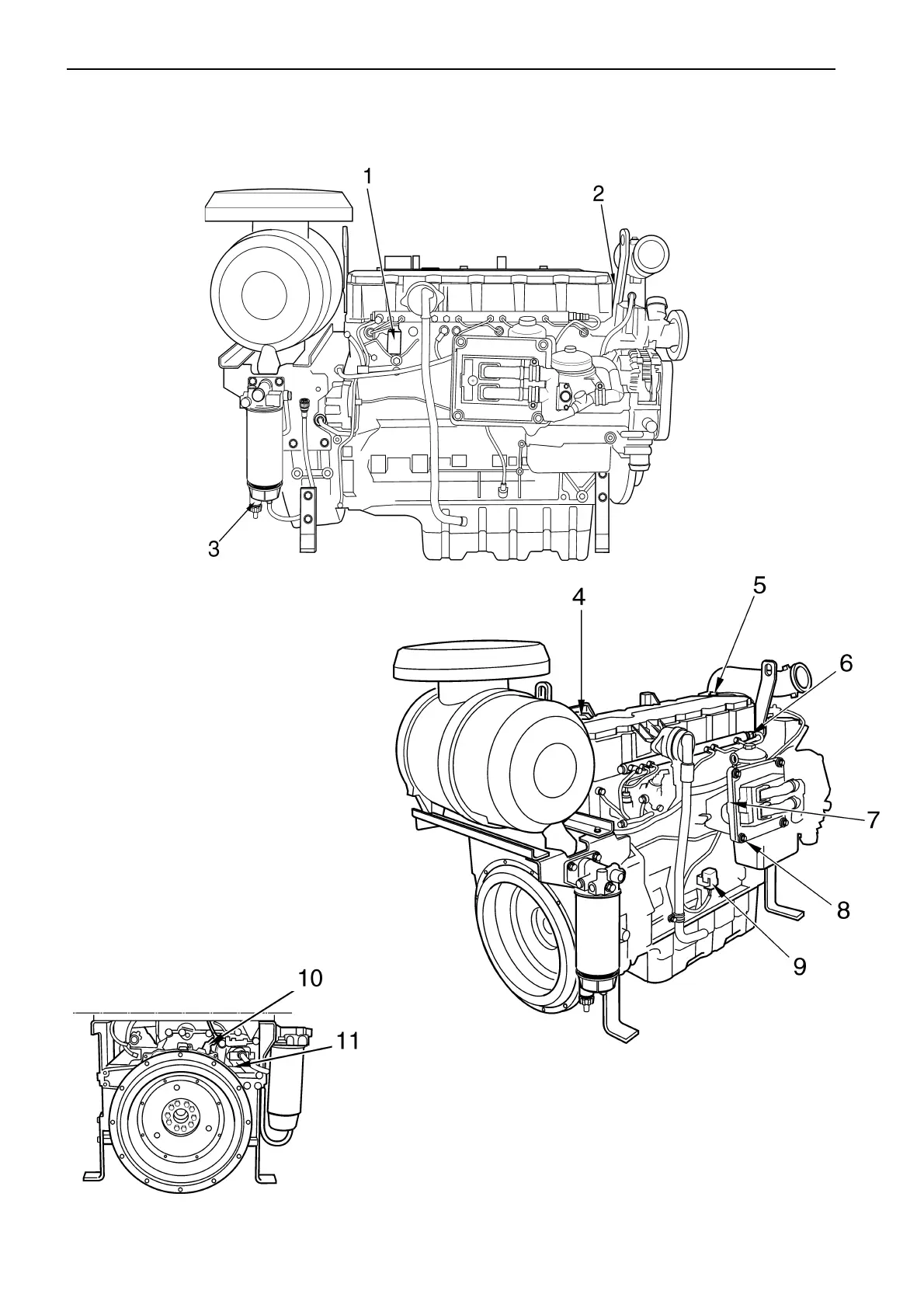

Component location TAD 734 GE
1. Solenoid controlled proportional valve,
high pressure pump – fuel (MPROP)
2. Coolant temperature sensor
3. Water in fuel switch(mounted on primary
fuel filter).
4. Boost pressure and temperature sensor
5. Preheater, intake manifold
6. Fuel pressure in comman rail
7. Fuel pressure sensor
8. Oil pressure sensor
9. Main relay
10. Speed sensor, crankshaft
11. Speed sensor, camshaft
