Group 30: Electrical system Component description
13

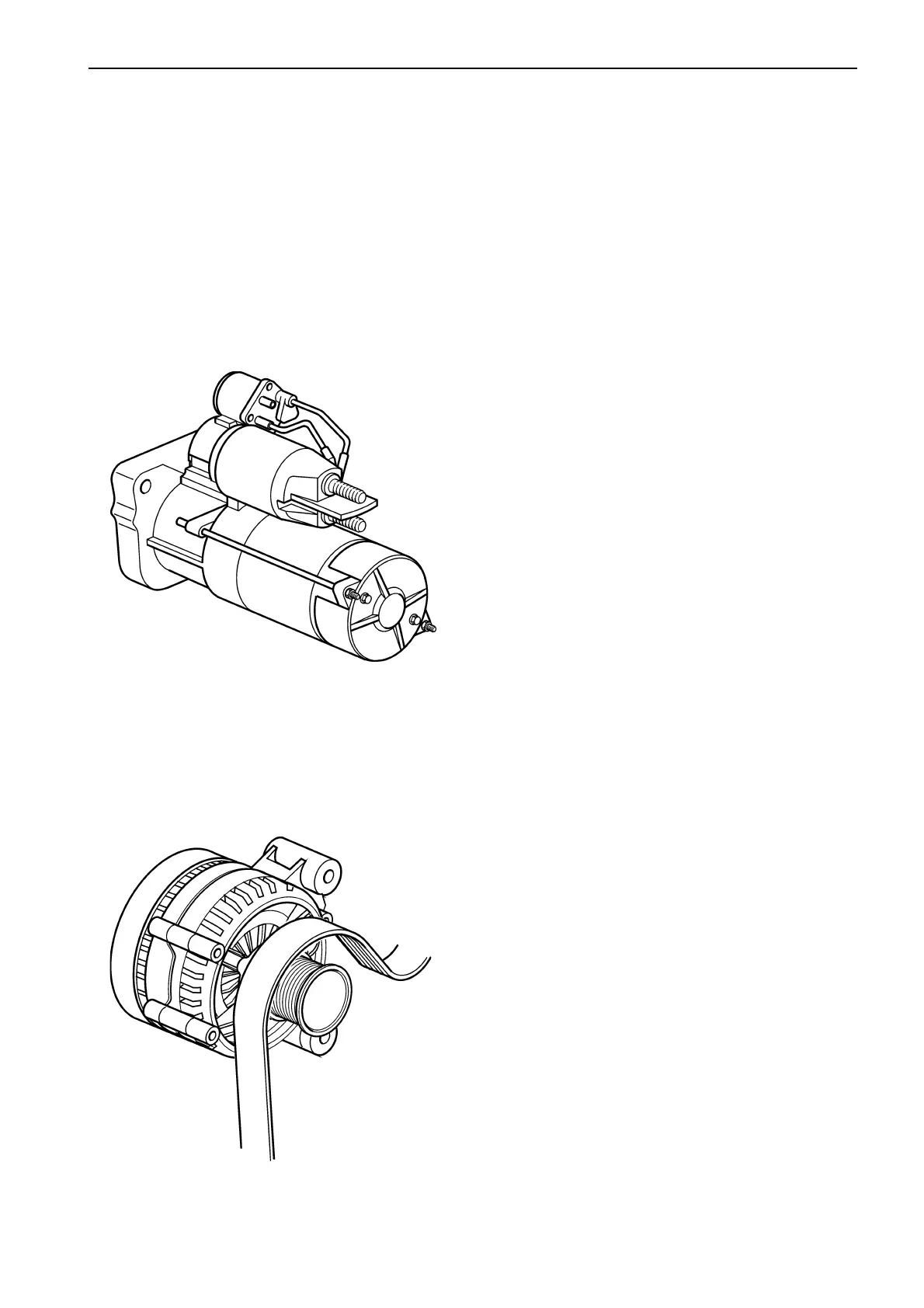

Starter motor
The starter motor is installed in the flywheel housing,
on the left-hand side of the engine. The starter motor
relay is “positive connected”, which means that the re-
lay is connected to battery voltage.
Alternator
The alternator is belt driven and mounted on the front
of the engine, on the right.
Component description
