Presentation
Orientation

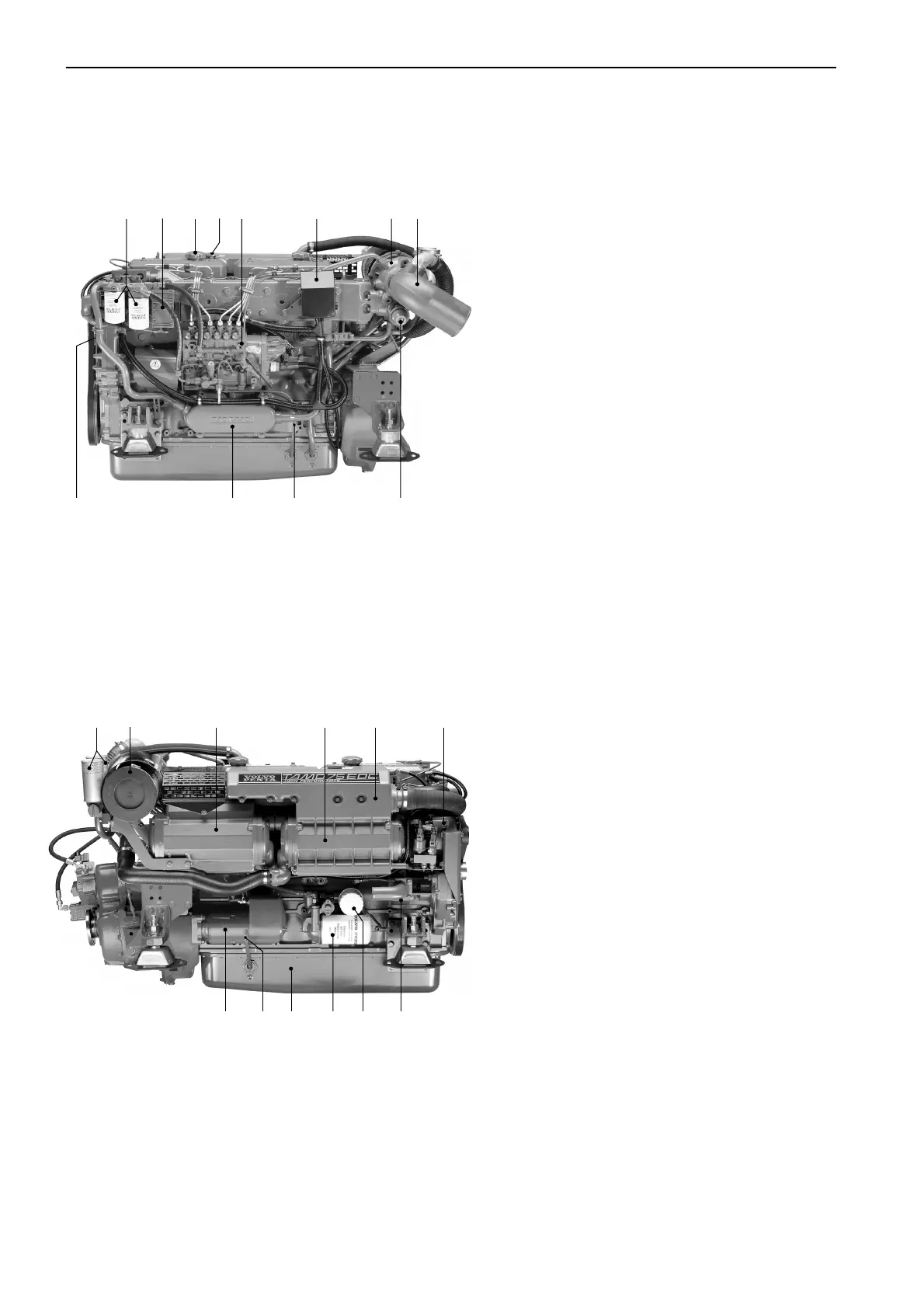

TAMD74C-B, TAMD74L-B, TAMD75P-A
1. Fuel filters
2. EDC control module
3. Oil filler cap
4. Coolant filler cap
5. Injection pump
6. Distribution box with semi-automatic
fuses
7. Turbocharger
8. Water cooled exhaust pipe elbow
(option)
9. Wastegate valve
10. Oil dipstick, engine
11. Oil cooler, engine
12. Circulation pump
TAMD74C-B*, TAMD74L-B*, TAMD75P-A
1. Filters for crankcase ventilation
2. Air Cleaner (ACL)
3. Charge air cooler (CAC)
4. Heat exchanger
5. Expansion tank
6. Alternator
7. Seawater pump
8. By-pass filter for lubricating oil
9. Lubricating oil filter
10. Oil sump
11. Oil dipstick, engine
12. Starter motor
* Note. The illustration shows TAMD75P.
However, both TAMD74C and TAMD74L agree in
apperance.
