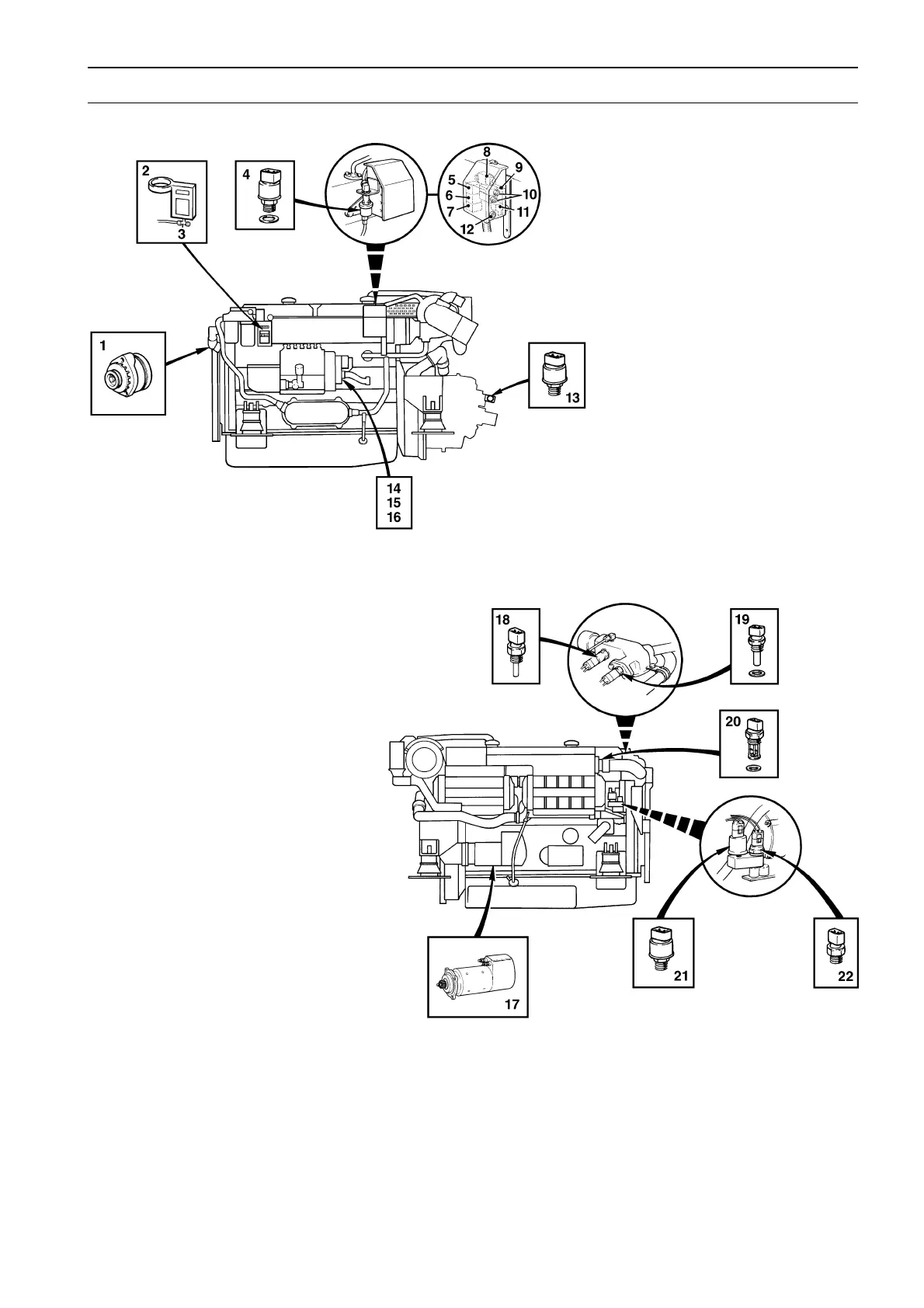

Maintenance: Electrical components diagram
1. Alternator
2. EDC control module
3. Turbo pressure sender, EDC
4. Turbo pressure sender, instrument
5. Starter relay
6. Main relay
7. Stop relay
8. Fuse for EDC system (7,5A)
9. DC/DC converter
10. Semi-automatic fuses
11. 2-pin connector, data link connector (DLC)
12. Connector, instrumentation
13. Oil pressure sender, reverse gear
14. Position sensor, control rod
15. Engine speed (RPM) sender
16. Electromagnetic actuator, EDC
17. Starter motor
18. Engine coolant temperature (ECT) sender, instrument
19. Engine coolant temperature (ECT) sender, EDC
20. Charge air temperature sender
21. Oil pressure switch, engine
22. Oil pressure sender, engine
Electrical components diagram
