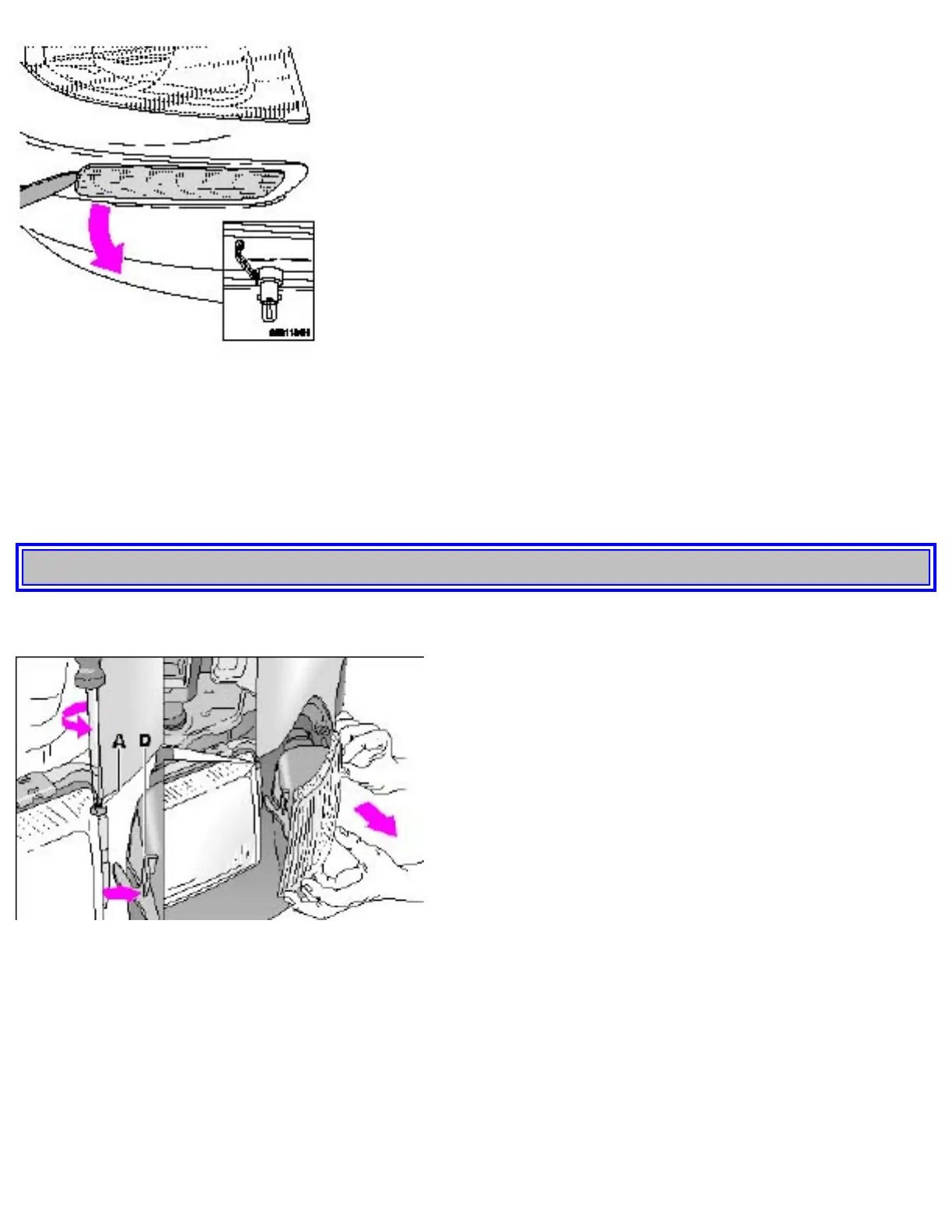

Side marker lamp replacement
Slide the lamp insert backward and pull out. Try to loosen the lamp insert with your fingers if possible.
Otherwise use a stiff piece of plastic or wood to protect the paint. Turn the bulb holder counter-
clockwise and pull out. Replace with a new bulb. Press in the bulb holder and twist clockwise. Reinstall
the lamp insert by pressing it into the bodywork.
pg. 89 Replacing bulbs
Front direction indicators and parking lights
Removing the bulb:
· Loosen the screw (A) between the headlight and direction indicator housings (max. 2 complete turns
counterclockwise), using the screwdriver supplied in the tool kit.
· Press clip D and move the direction indicator housing forward.
