Volvo VBB4 - Cable Connections and Power Supply; RTI and Power Cables; EOPS Power Integration

VOLVOTECH.EU INSTALLATION MANUAL
VBB4 ( VIDEO BREAK- IN BOX TYPE 4) VERSION 1.1
Page 3 of 14
CopyRight 2012, VolvoTech.EU
C: BE || CD 121107 || V 1.00 || RD 140228 || HC 1 || FC 3.26 ||
VolvoTech-manual-EN-installation-VBB4-VID-POW-MC-S40-V50-
C70-1.1.doc
Contact details:
VolvoTech.EU
support@volvotech.eu

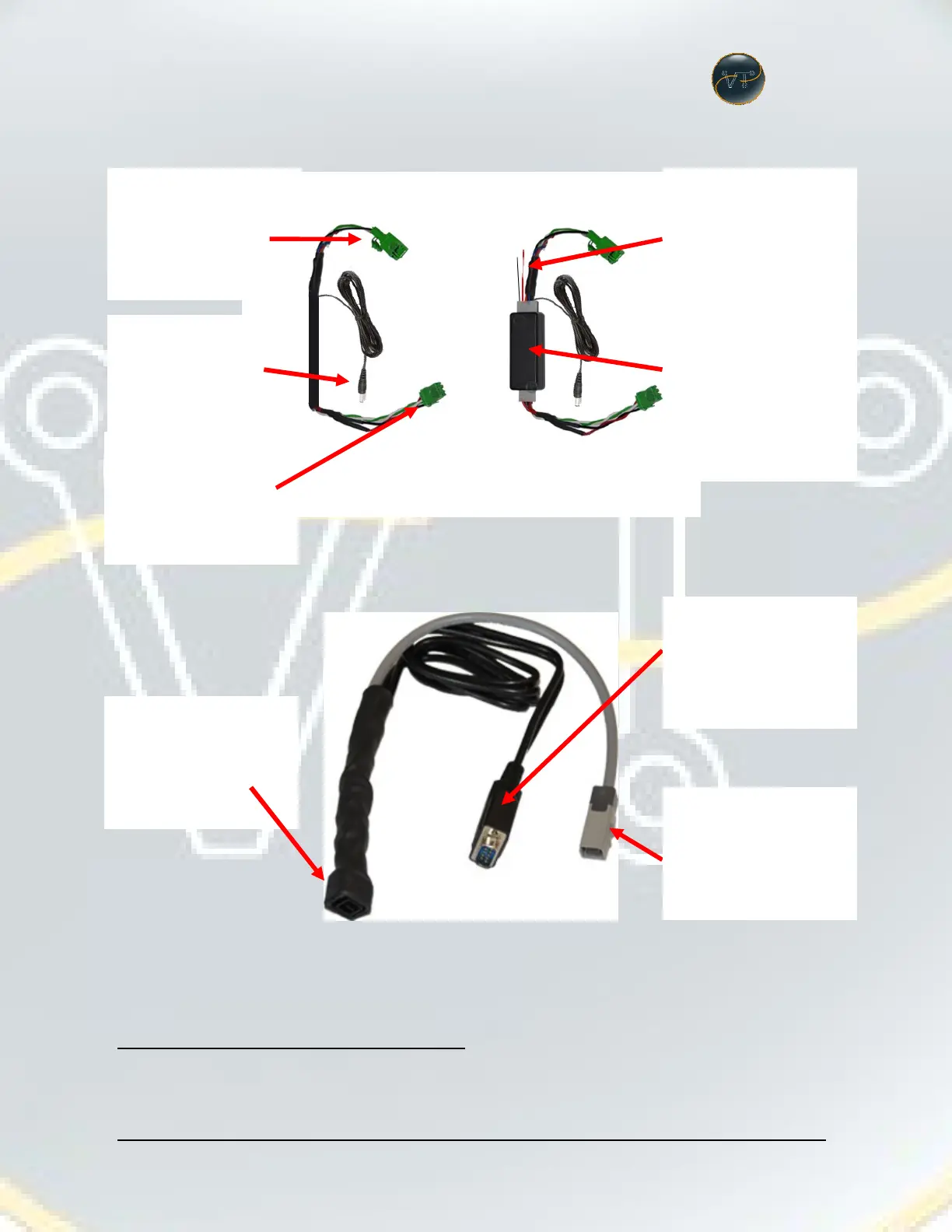

VBB Power + EOPS:
In case you ordered the
combined EOPS you
can connect any
required switched
power to the RED and
BLACK wire here.
OEPS device:
Starts up power feed to
the RED wire once the
car is STARTED.
(This saves your
battery dramatically!)
RTI Receptable:
Connects to the
connector you need to
remove from the RTI
computer.
Power connector:
Connects to the Power
port on the VBB4.
RTI Connector:
Connects to the RTI
computer, in the port
where you removed the
original green
connector from.
RTI Receptable:
Connects to the
connector you need to
remove from the RTI
computer.
VBB4 C
onnector:
Connects to the RTI
IN/OUT port of the
VBB4.
RTI Connector:
Connects to the RTI
computer, in the port
where you removed the
original grey connector
from.
