154 Graphic Display
Temperature, transmission oil (option)
MENU: GAUGE, TEMPERATURE,
TRANSMISSION OIL

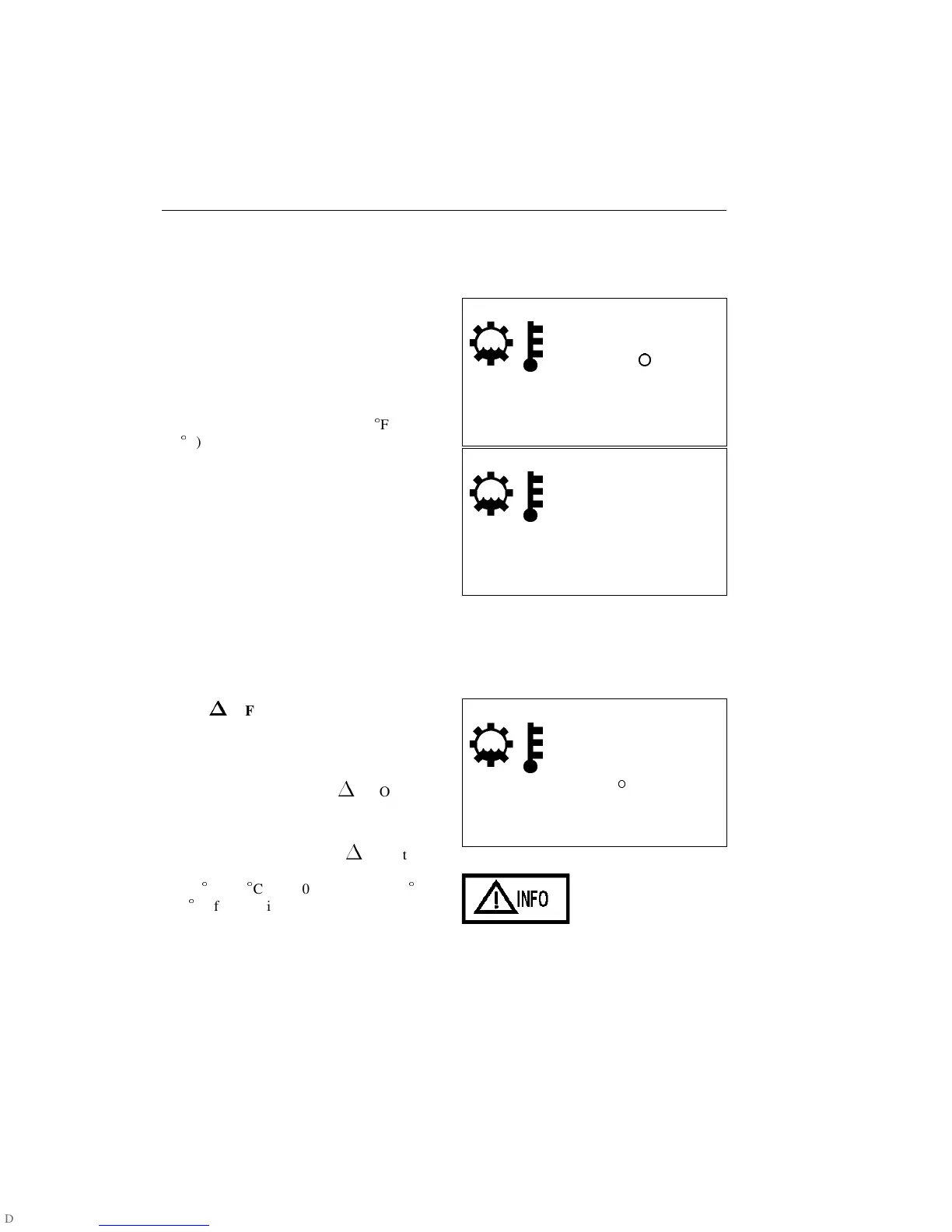

The transmission oil temperature is shown
as in the diagram.
NOTE! The temperature display starts
showing only at approximately 150
F
(65
C).
If the sensor data for Transmission oil
temperature is not available, the symbol is
shown as well as the text NO DATA.
T3008831
170 F
T3008831
NO
DATA
Information message
Yellow
1
INFO lamp
If the temperature of the transmission oil
becomes too high, an information message
is shown automatically with the text HIGH.
At the same time the yellow
1
INFO
telltale under the display lights up. Esc ac-
knowledges the information message.
For HIGH to display with the
1
INFO tell-
tale, the transmission oil temperature must
be 210
F (100
C) for 30 minutes, or 250
F
(120
C) for 10 minutes.
T3008831
HIGH
250
F
T3008860
