Volvo XC70 - Combined Instrument Panel - Meaning of Indicator Symbols

||
03 Instruments and controls
03
70
* Option/accessory, for more information, see Introduction.

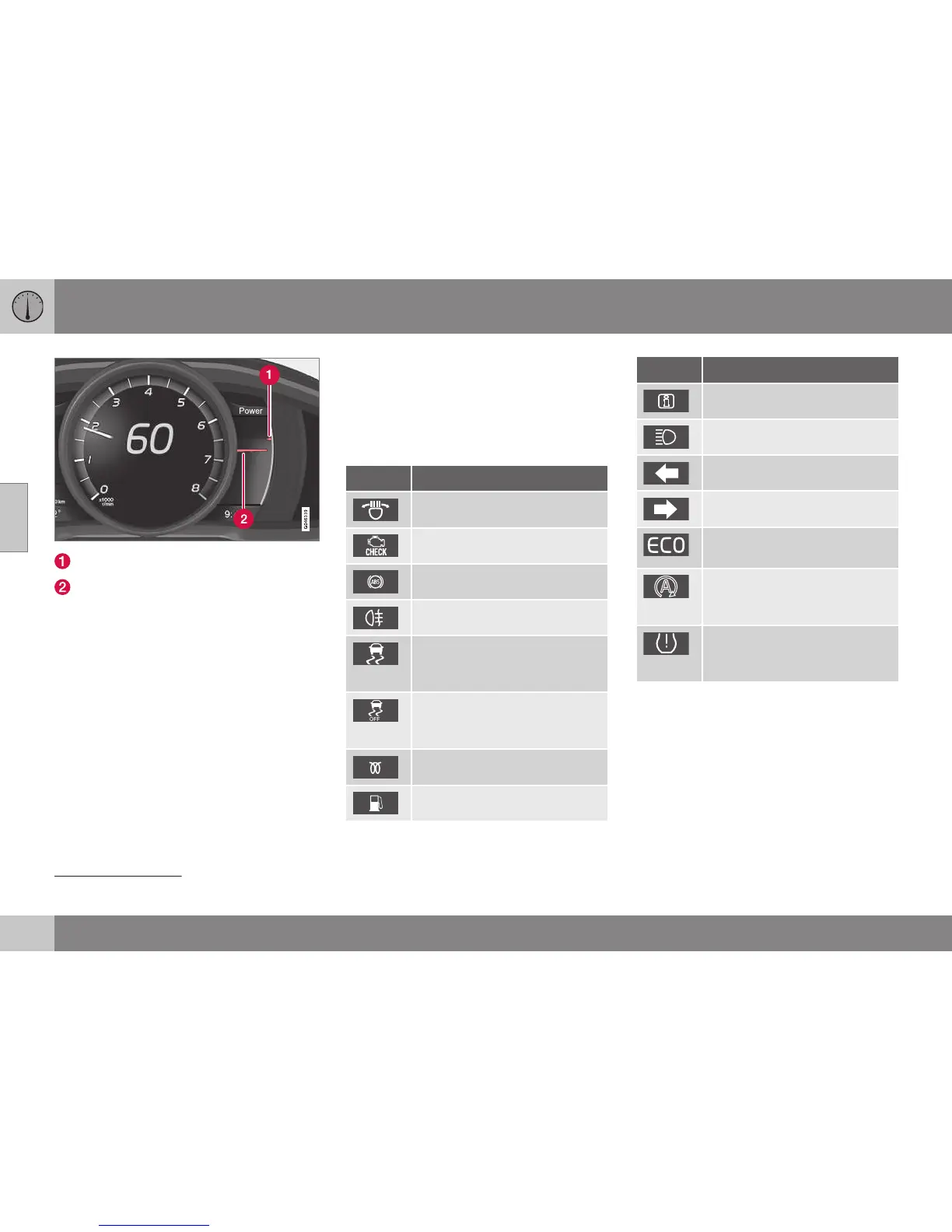

Available engine power
Engine power utilised
Available engine power
The smaller, upper pointer shows the availa-
ble engine power
9
. The higher the reading on
the scale, the more power is available in the
current gear.
Engine power utilised
The larger, lower pointer shows the engine
power utilised
9
. The higher the reading on the
scale, the more power is being taken from the
engine.
A large gap between the two pointers indi-
cates a large power reserve.
Combined instrument panel -
meaning of indicator symbols
The indicator symbols alert the driver that a
function is activated, that the system is oper-
ating, or that an error or failure has occurred.
Indicator symbols
Symbol Specification
ABL fault
Emissions system
ABS fault
Rear fog lamp on
Stability system, see Electronic
stability control (ESC) - general
(p. 196)
Stability system, sport mode,
see Electronic stability control
(ESC) - operation (p. 196)
Engine preheater (diesel)
Low level in fuel tank
Symbol Specification
Information, read display text
Main beam On
Left-hand direction indicator
Right-hand direction indicator
Eco- function on, see ECO*
(p. 290)
Start/Stop, the engine auto-
stopped; see Start/Stop* -
function and operation (p. 282)
Tyre pressure system , see
Tyre pressure monitoring*
(p. 334)
ABL fault
The symbol illuminates if a fault has arisen in
the ABL function (Active Bending Lights).
Emissions system
If the symbol illuminates after the engine has
been started then it may be due to a fault in
the car's emissions system. Drive to a work-
shop for checking. Volvo recommends that
you seek assistance from an authorised Volvo
workshop.
9
Power is dependent on engine speed.
