4

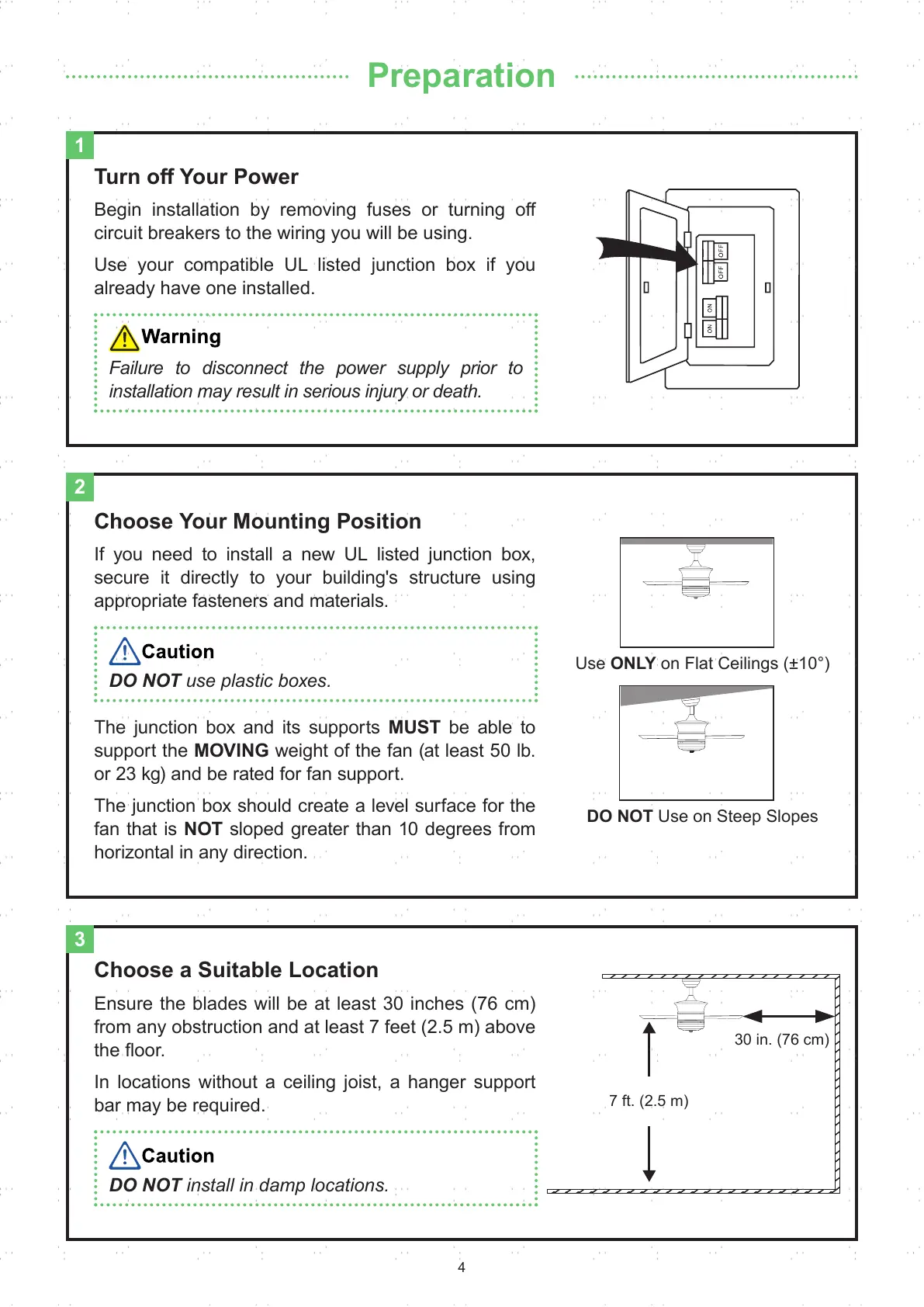

Preparation
Turn o Your Power
Begin installation by removing fuses or turning o
circuit breakers to the wiring you will be using.
Use your compatible UL listed junction box if you
already have one installed.
1
Use
ONLY
on Flat Ceilings (±10°)
DO NOT
Use on Steep Slopes
Choose Your Mounting Position
If you need to install a new UL listed junction box,
secure it directly to your building's structure using
appropriate fasteners and materials.
The junction box and its supports MUST be able to
support the MOVING weight of the fan (at least 50 lb.
or 23 kg) and be rated for fan support.
The junction box should create a level surface for the
fan that is NOT sloped greater than 10 degrees from
horizontal in any direction.
2
Choose a Suitable Location
Ensure the blades will be at least 30 inches (76 cm)
from any obstruction and at least 7 feet (2.5 m) above
the oor.
In locations without a ceiling joist, a hanger support
bar may be required.
30 in. (76 cm)
7 ft. (2.5 m)
3
DO NOT use plastic boxes.
DO NOT install in damp locations.
Failure to disconnect the power supply prior to
installation may result in serious injury or death.
To Next Page
