5

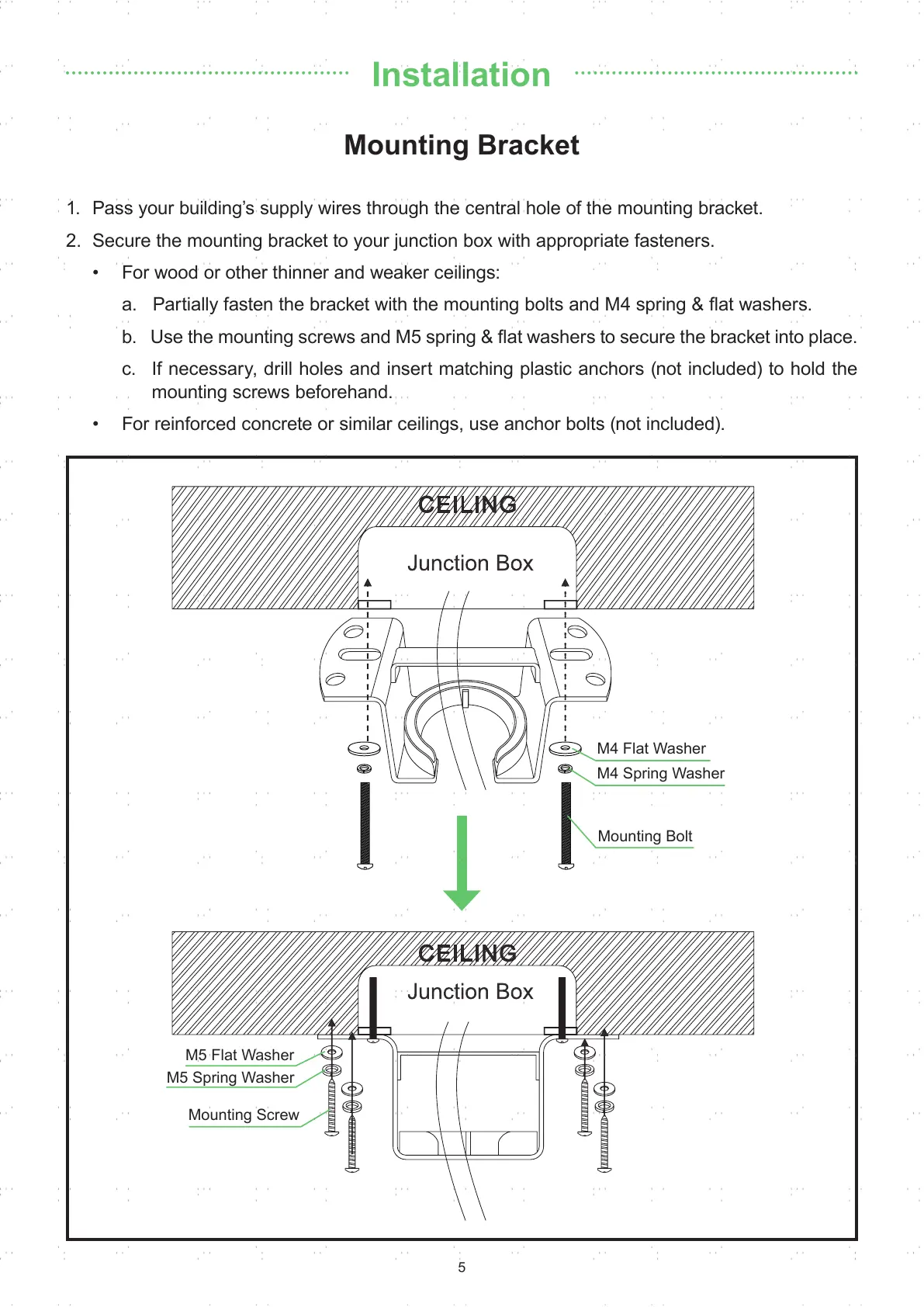

1. Pass your building’s supply wires through the central hole of the mounting bracket.
2. Secure the mounting bracket to your junction box with appropriate fasteners.
• For wood or other thinner and weaker ceilings:
a. Partially fasten the bracket with the mounting bolts and M4 spring & at washers.
b. Use the mounting screws and M5 spring & at washers to secure the bracket into place.
c. If necessary, drill holes and insert matching plastic anchors (not included) to hold the
mounting screws beforehand.
• For reinforced concrete or similar ceilings, use anchor bolts (not included).
M4 Flat Washer
M4 Spring Washer
Mounting Bolt
M5 Flat Washer
M5 Spring Washer
Mounting Screw
Installation
Mounting Bracket
To Next Page
