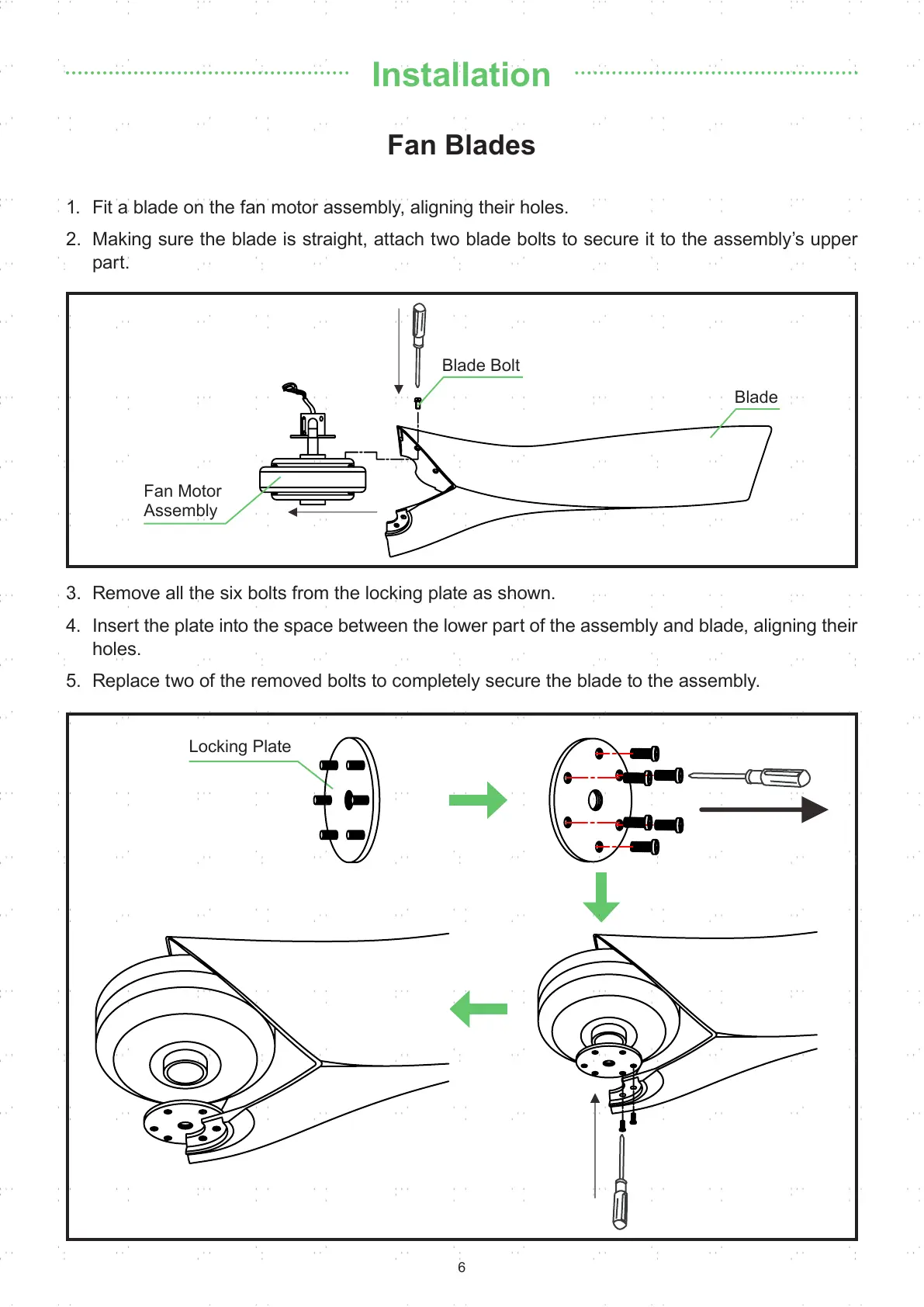

1. Fit a blade on the fan motor assembly, aligning their holes.
2. Making sure the blade is straight, attach two blade bolts to secure it to the assembly’s upper
part.
3. Remove all the six bolts from the locking plate as shown.
4. Insert the plate into the space between the lower part of the assembly and blade, aligning their
holes.
5. Replace two of the removed bolts to completely secure the blade to the assembly.
Installation
Fan Blades
Fan Motor
Assembly
Blade
Blade Bolt
Locking Plate
