Vonyx VXA-3000 User Manual

4

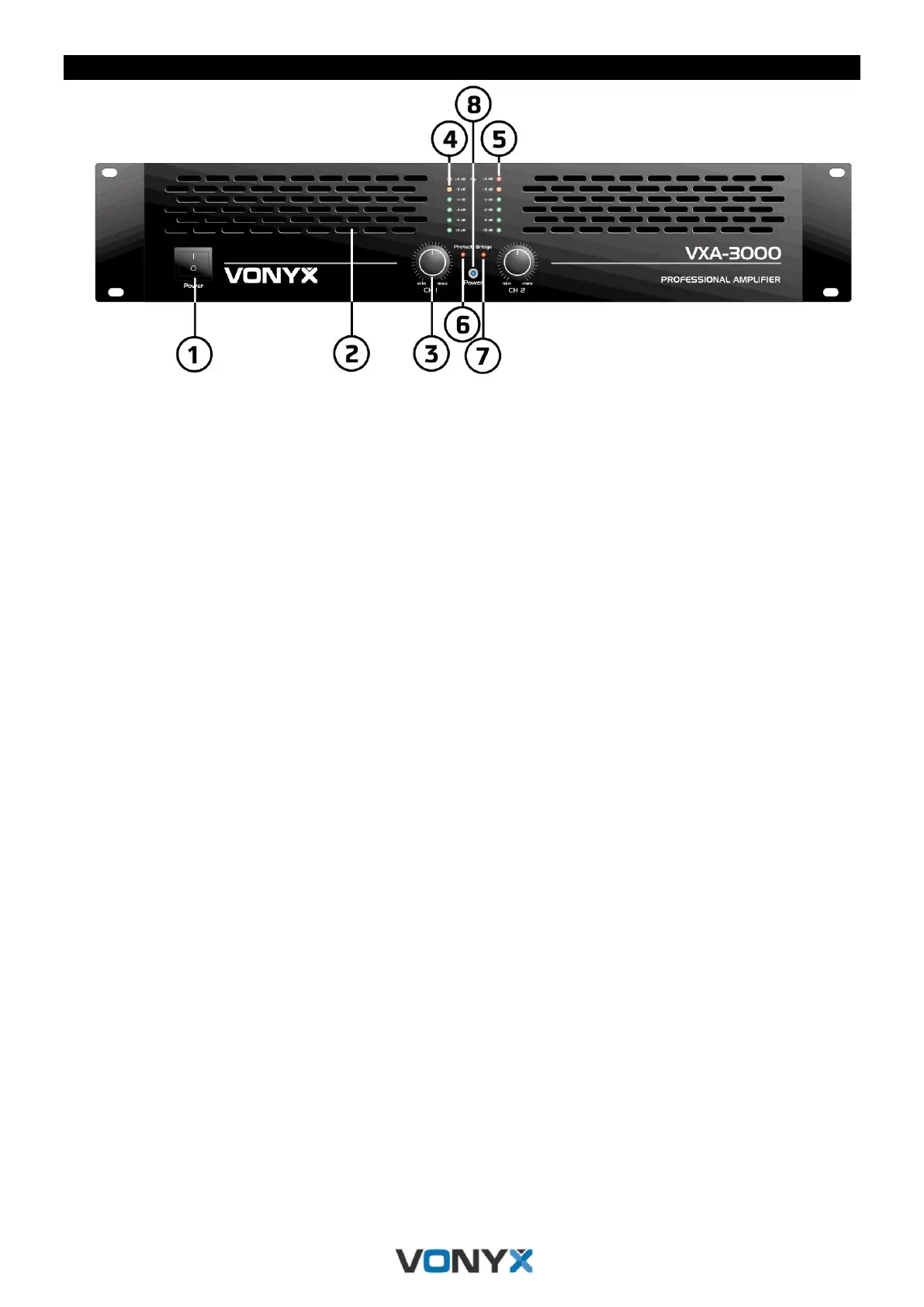

FRONT PANEL
1. On/Off Switch.
For switching the amplifier on and off. Always adjust the volume down to its minimum before switching this
amplifier on.
2. Cooling Vents.
Front to rear forced airflow.
3. Volume Controls.
These controls adjust the volume level of both channels. Turn slightly to the left when the clip indicators (4)
light up.
4. Signal indicators.
Three orange LEDs indicate the amplifiers output signal levels.
5. Clip Indication.
These LEDs will light up when one or both channels are on max power. It can occur that these LEDs will lit up
now and then, this is not a problem. But if it lights up continually you need to adjust the volume down,
otherwise permanent damage to equipment might occur
6. Protect Indication.
When on any given point, something damaging might occur to your amplifier, it will switch in protect mode.
The amplifier will disconnect the point where the damage is about to occur and switch on the protection led to
indicate to you that something is wrong. Reasons might be: Bad ventilation,
A low impedance (< 4 Ohm), Defect fan(s), A short circuit in cables.
7. Bridge Mode Indication.
8. Power Indication.
This clear blue indicator will light when the amplifier is turned on.

Vonyx VXA-3000 Specifications

General

Quantity per pack	- pc(s)
Product color	Black
Purpose	Performance/stage
Frequency band	10 - 20000 GHz
Connectivity technology	Wired
Damping factor	250
Amplifier class	-
Input sensitivity	775 mV
Audio output channels	2.0 channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	90 dB
Total Harmonic Distortion (THD)	- %
RMS power output per channel (4 Ohm)	1500 W
RMS power output per channel (8 Ohm)	1000 W
Bridge-mode power output per channel (8 Ohm)	3000 W
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Speakers connectivity type	6.35mm

Weight and Dimensions

Depth	482 mm
Width	295 mm
Height	88 mm
Weight	9000 g
