Your VorTech MP40w ES
Adjust the Pin Spacer (MP40w ES Only)
The VorTech pump is designed to operate with a constant gap between
both halves of the device. The pin spacer is used to ensure the proper
spacing for various aquarium wall thicknesses.
• Make sure to measure your aquarium’s glass thickness using a ruler
or contact the aquarium manufacturer in order to determine the exact
thickness.
• To adjust for the proper aquarium thickness, pull the rubber pin spacer
from the motor housing. Then align the VorTech’s power cord emerg-
ing from the motor with your aquarium’s wall thickness to achieve the
proper offset from your aquarium.
Note: 3/4” thick aquariums do not use the pin spacer at all.
To remove the nozzle from the wet-frame, remove the entire wet-
half of the pump from the aquarium and place it on a non-metallic
surface. Gently but firmly press down on the nozzle with your palm
and twist counter-clockwise. The nozzle should become free of the
wet-frame. It may then be cleaned of any obstructions.
Specifications and Operating Parameters
Flow: 200-3,200 gallons/hour, Power: 6-30 watts,
Maximum Motor Temp: 50-60 degrees C
Aquarium Wall Thickness: 3/16” to 3/4”
IMPORTANT: When adjusting the pin spacer, be sure not to bend the rubber pins
as they are inserted into the holes within the heat sink as this may permanently damage your VorTech. Bent
pins WILL NOT be covered under warranty.
2

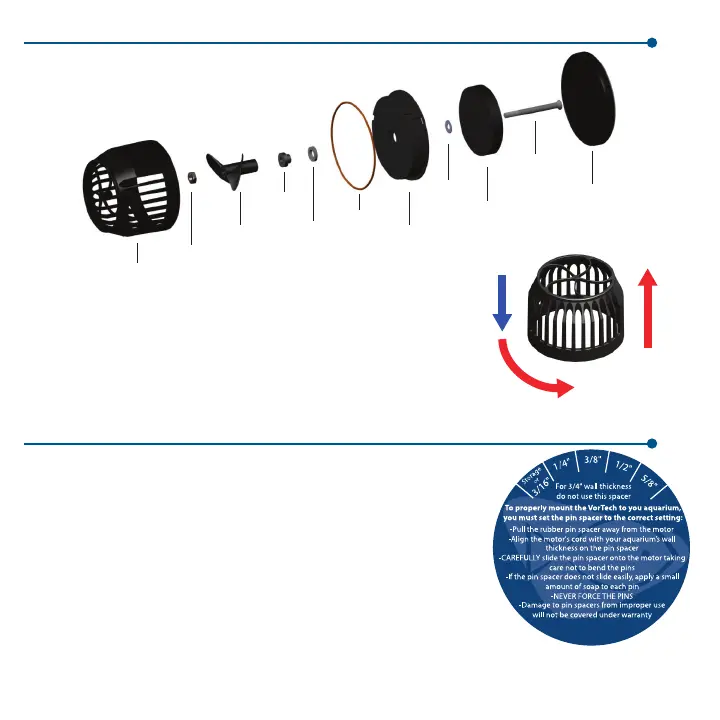

1.Push
2.Twist
3.Remove
Nozzle
Ceramic Bearing
Frame Cover
O-ring
Propeller
Plastic Coated Magnet
Washer
Drive Shaft
Wet Frame
Drive Shaft Nut
Drive Shaft Screw
