DIAMON DBACK
™
HD 2000
4 5

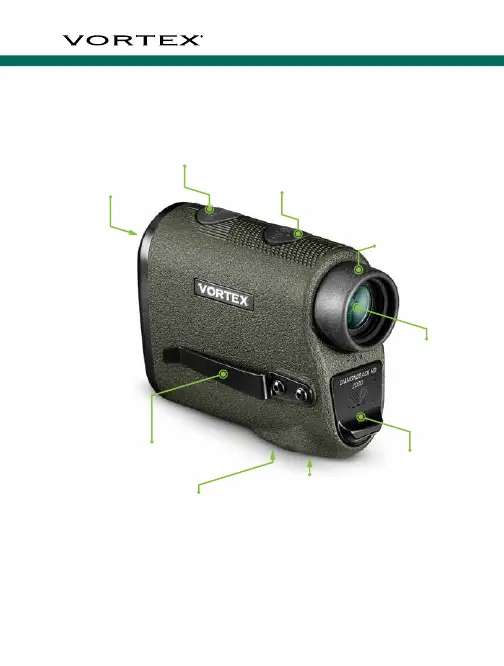

Ocular Lens
Battery
Compartment
Wrist Lanyard
Attachment Socket
Diopter Focus
Measure Button
Utility Clip
Menu Button
Tripod
Adapter Socket
Objective Lens
BASIC OPERATION
Battery Installation and Replacement
To insert a new battery,
flip up the finger tab on
the Battery Cap located on
the bottom of the unit and
unscrew, counterclockwise,
to remove. Insert CR2 battery
with the positive side (+)
facing outwards. Reinstall
Battery Cap and ensure it is
tightly closed.
Power Up
Once the battery is installed, the Diamondback
™
HD 2000
is in ready condition – the normal, power-off condition
when not ranging. To power up the Diamondback
™
HD 2000 from ready condition, press and release the
“Measure” button. The HCD or LOS ranging screen will
display. The Diamondback
™
HD 2000 will power down
automatically after 20 seconds of non-use.
