Vortex ROK DVS J User Manual

ENGINE INSTALLATION
DVS-Junior
17

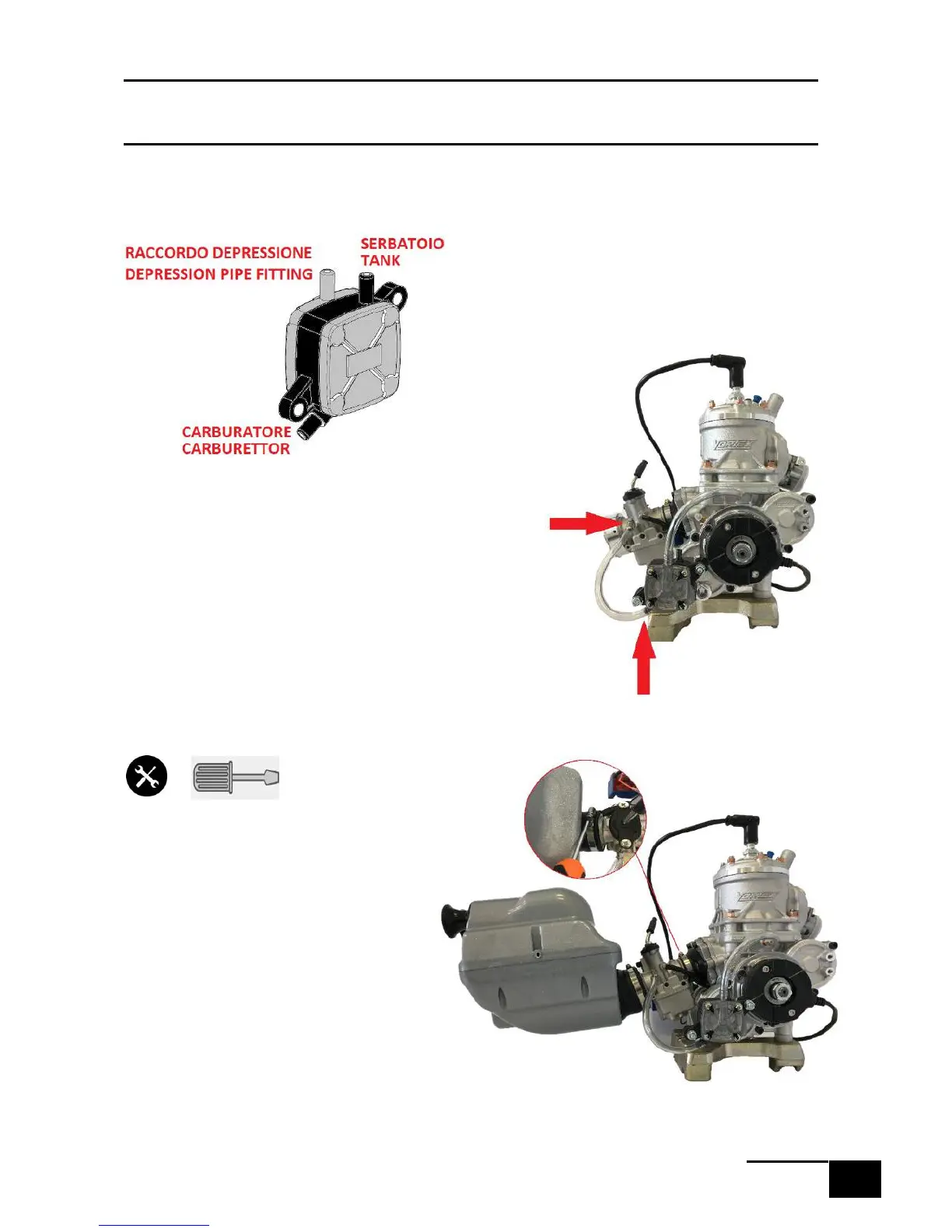

Insert now the tube from the fuel pump to the carburettor as per red arrows. Check carefully with
the attached diagram.
Secure the tube to the fuel pump and the carburettor
by using plastic ties.
Phillips
Screwdriver
Fasten the intake silencer to the
carburettor by using the specific metal
clamp supplied.
