AD60VTH SPEAKER CONNECTION CHART
AD60VTH

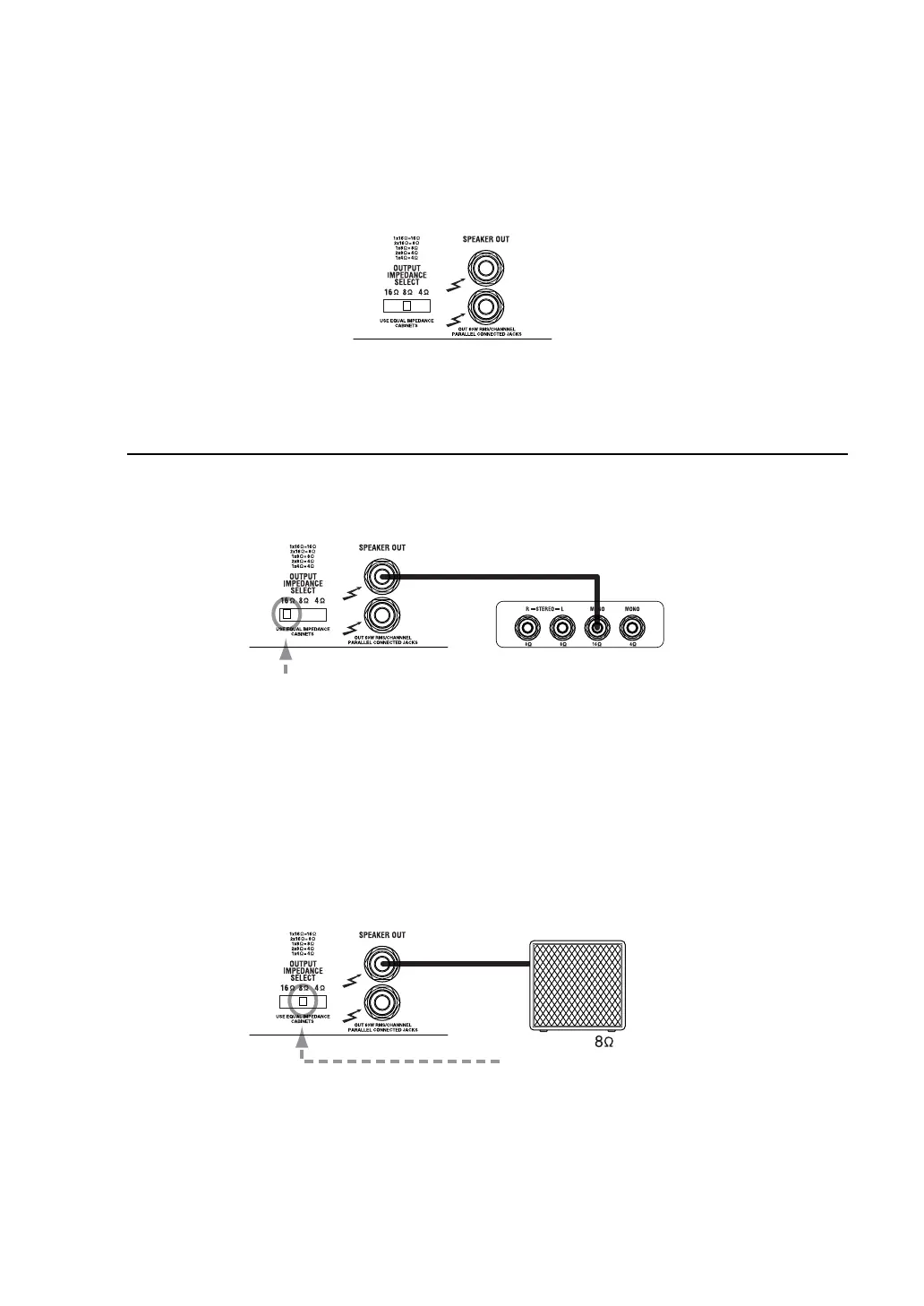

If you use: Set Output Impedance Select to: Use Speaker Jack:
AD212/AD412 mono 16 Ohms Either one
AD212 or AD412
One 16 Ohm cabinet 16 Ohms Either one
One 8 Ohm cabinet 8 Ohms Either one
One 4 Ohm cabinet 4 Ohms Either one
Two 16 Ohm cabinets 8 Ohms Both
Two 8 Ohm cabinets 4 Ohms Both
Two 4 Ohm cabinets DO NOT DO THIS. YOU WILL CAUSE DAMAGE!!!!!!
Input
One 8 Ohm cabinet
