The ignition
sensor detects
the on/off status
of the engine.
When the
engine is shut
off, Voyager will
know to go to
sleep for power
conservation.
Connect the power
cable directly to the
vehicle’s 12 volt battery.
A 0.5A fuse (not
provided) should be
used.
Power Wire
For air-cooled machines.
In-line in
radiator hose
for water-cooled
machines.

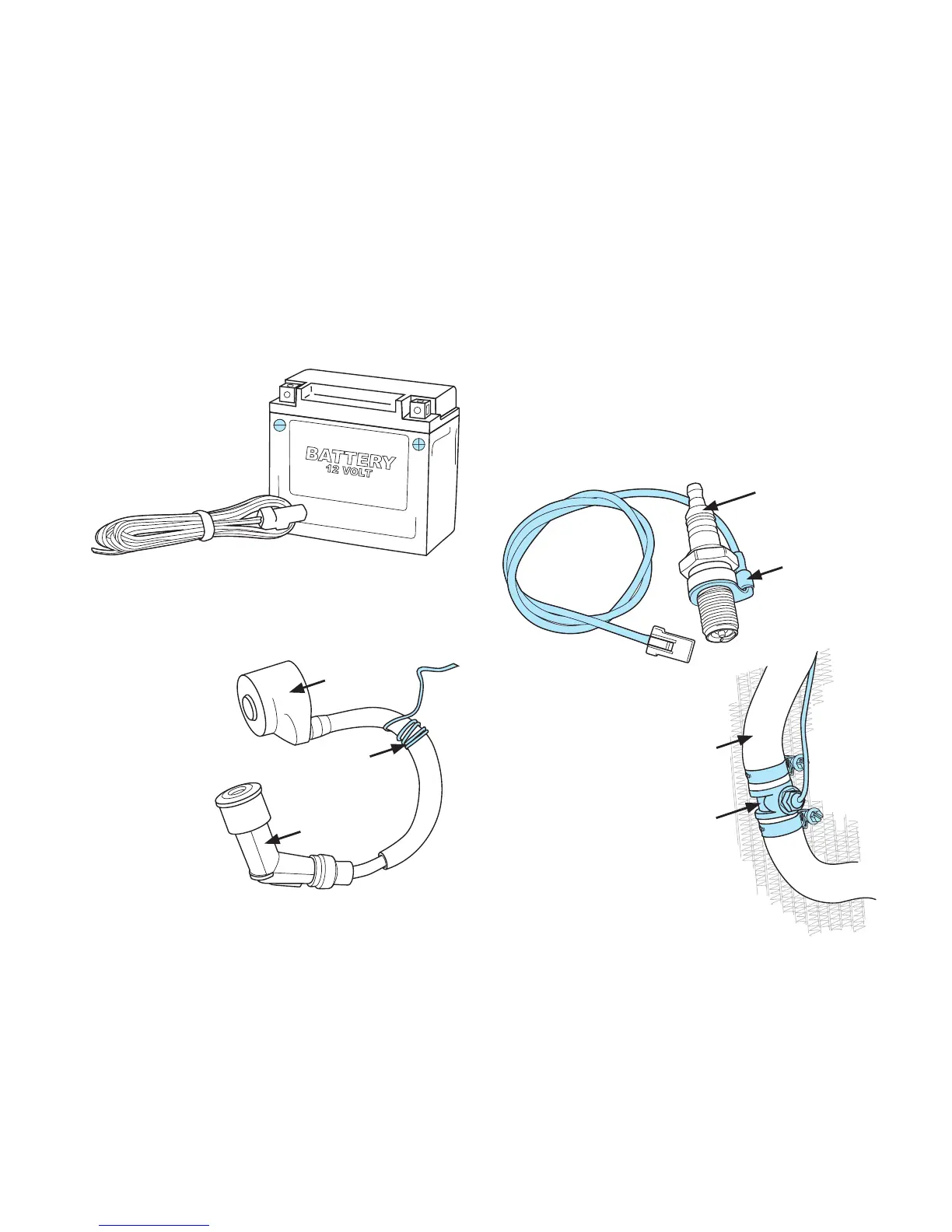

Physical Features » Power and Temperature Sensors
Vehicle Power: Temperature Sensors:
Radiator Hose
Sensor:
Cylinder Head Sensor:
Spark Plug
CHT
Temperature
Sensor
Radiator
Hose
Radiator
Hose
Temperature
Sensor
Ignition Sensor:
Ignition
Sensor
Wrap
Coil
Spark Plug
See model-specic instructions for mounting
procedure.
