The connection should follow
the same color and the correct
arrow direction.
The input voltage never exceeds 5V and the
current needs to be 2A or above for the USB
power source to make sure the dash cam
works properly.
Camera Installation
Screw
Double-sided
foam tape
Double-sided
foam tape
The concave and convex bayonet of the joint shall be matched correctly
Screw Nut:
Just screw the nut when the cable connected
but not twist the cable or the connector
Power Module Installation
OFF
ON
Positive
Negative
A 12V wire that is
controlled by the key
Double-sided foam tape
double-sid ed fo am tape
+
-
Connect red wire to the battery positive terminal, black wire to the negative terminal,
and yellow wire to the 12V port controlled by key ignition (ACC wire).The dash cam
will automatically turn on and off with your bike ignition.

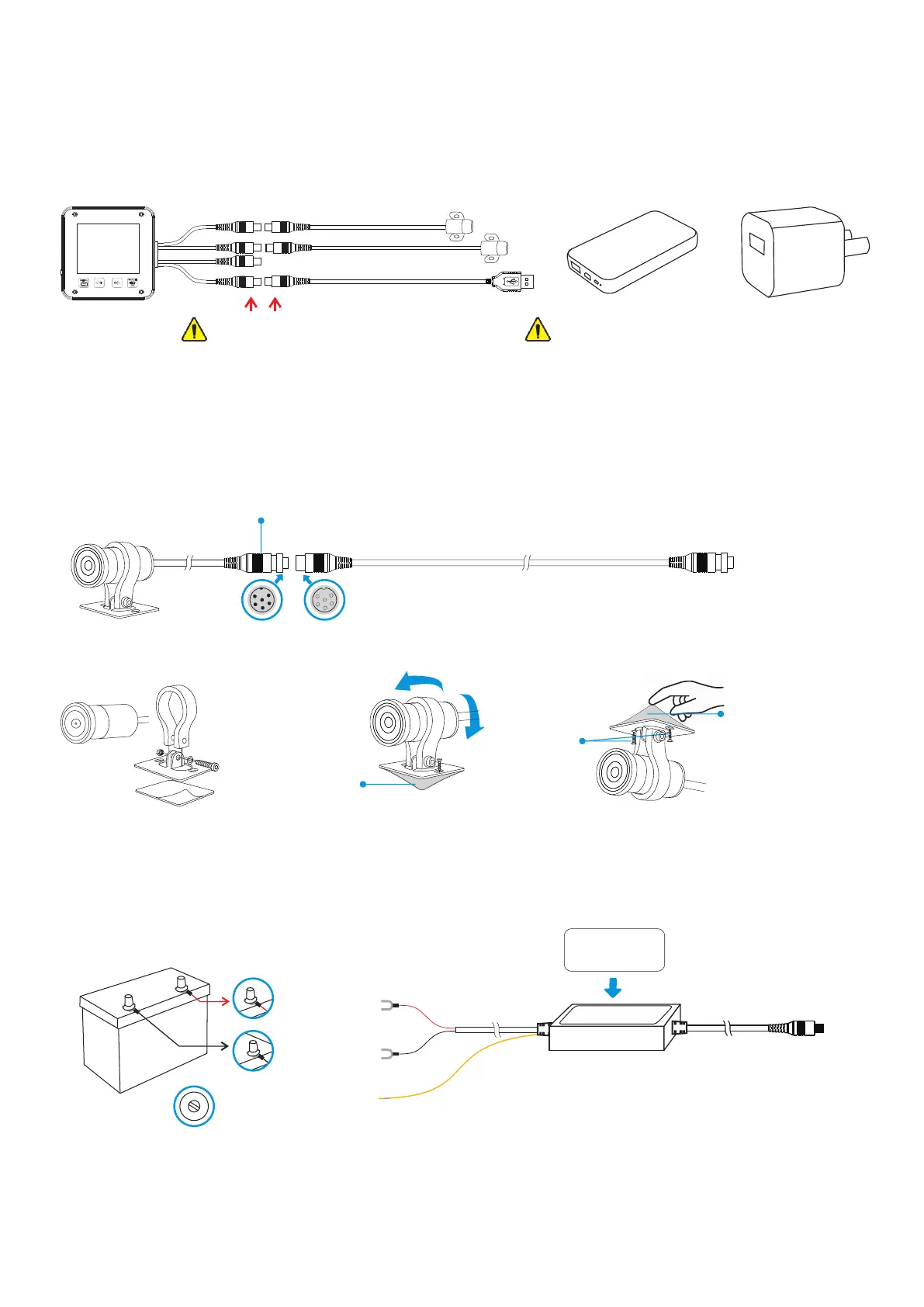

1) Connect cam 1 & cam 2 to the main unit.
2) Find the USB test cable and connecting to the power bank or USB adaptor to do a quick
test before installation.
3) Prepare installation if everything looks good.
Quick Test
