User Manual Visionpro
®
C Series Display Cube
- -

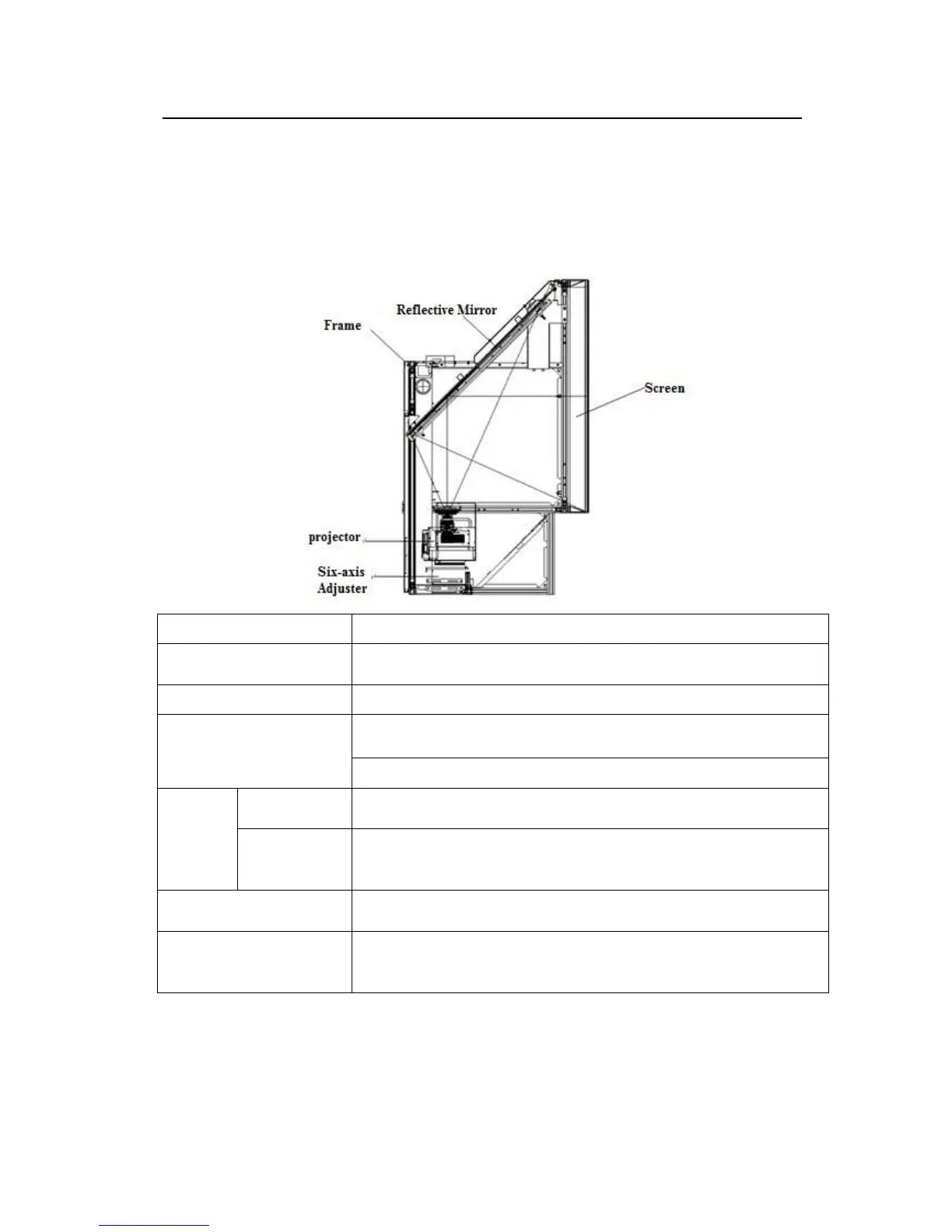

1.3 Main Components of C Series Display Cube
The Visionpro
®
C series display cube consists of the following parts. The relevant
functions are described in the following table.
A part of the structure for positioning and installing the
components of the integrated digital display cube.
Displays the image received from reflective mirror.
1）Reflects the visual optical signal from the digital display
component to the screen;
2）Reduces the thickness of the integrated digital cube.
Converts the digital signal in TMDS format to an image signal to
produce image information
Converts computer signal into a digital signal in TMDS format
and inputs the signal to the projector. It also provides a control
port for receiving the control signal from the computer.
It is embedded in the display cube frame and used to supply
power to the engine and interface box.
The mechanical position adjustment part of the projector, which
is used to ensure the complete and correct output of the display
image to the screen.
