Vtron C-DX503 - S Ystem C Onfiguration

User Manual Visionpro
®
C Series Display Cube
- -
40
4.2 System Configuration
A basic video wall system is composed of display cubes, one or more multi-screen

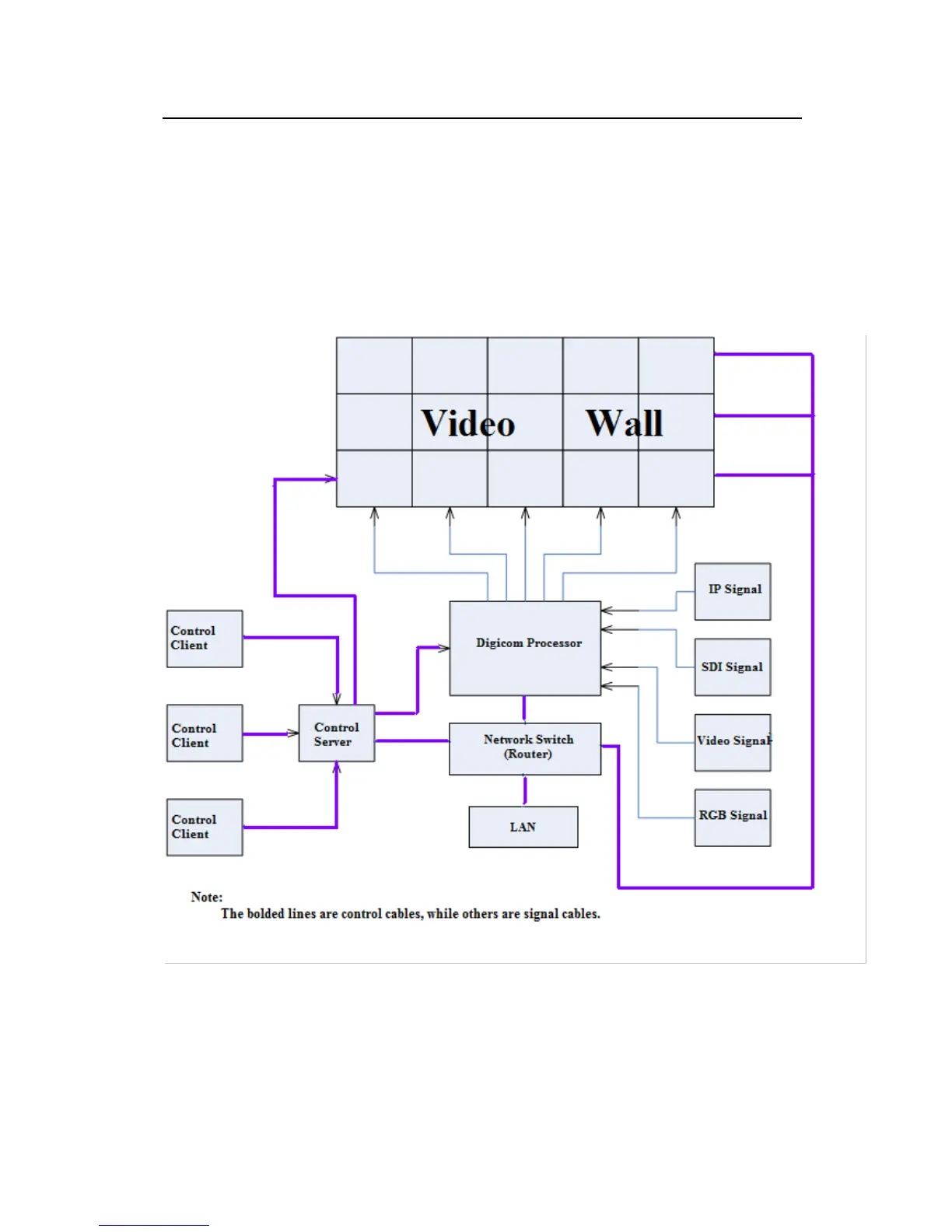

processors, pedestals and other devices. Configuration for a 3×5 video wall system is
shown in the following figure.
