 E-CP30VR02 Signal Processing Board（Optional）
E- CP30VR02 Signal Processing Board
 Specifications of E-CP30VR02 Signal Processing Board
VIDEO Signal Input Port
CVBS
Connector Type
BNCx1
Signal Format
CVBS
Signal System
PAL, NTSC, SECAM
Signal Amplitude
0.5 Vpp~2.0Vpp

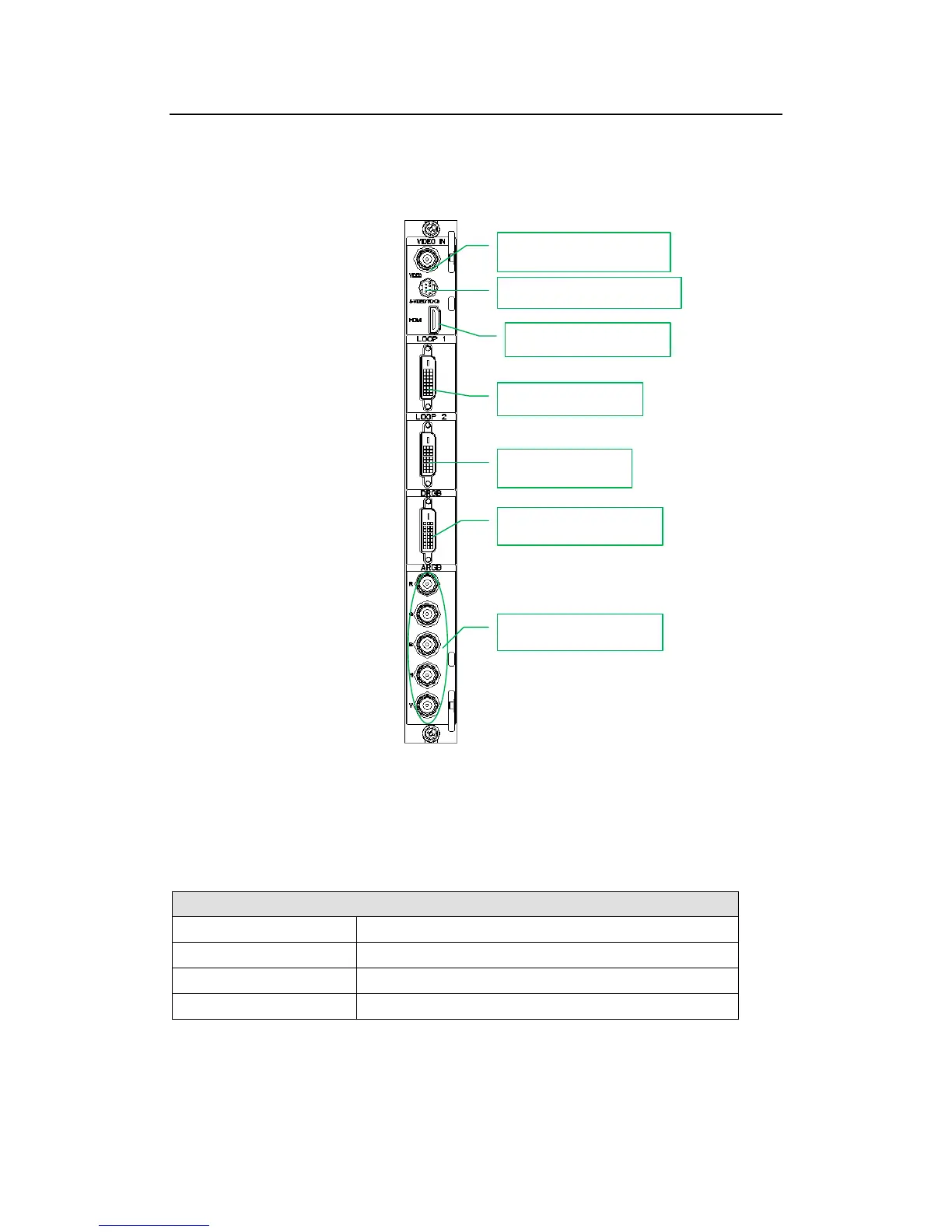

VIDEO signal input port
S_VIDEO signal input port
HDMI signal input port
Signal loop-out port
DRGB signal input port
ARGB signal input port
Signal loop-in port
