Vuly Quest - Page 16

16
A.
B.
C.
D.

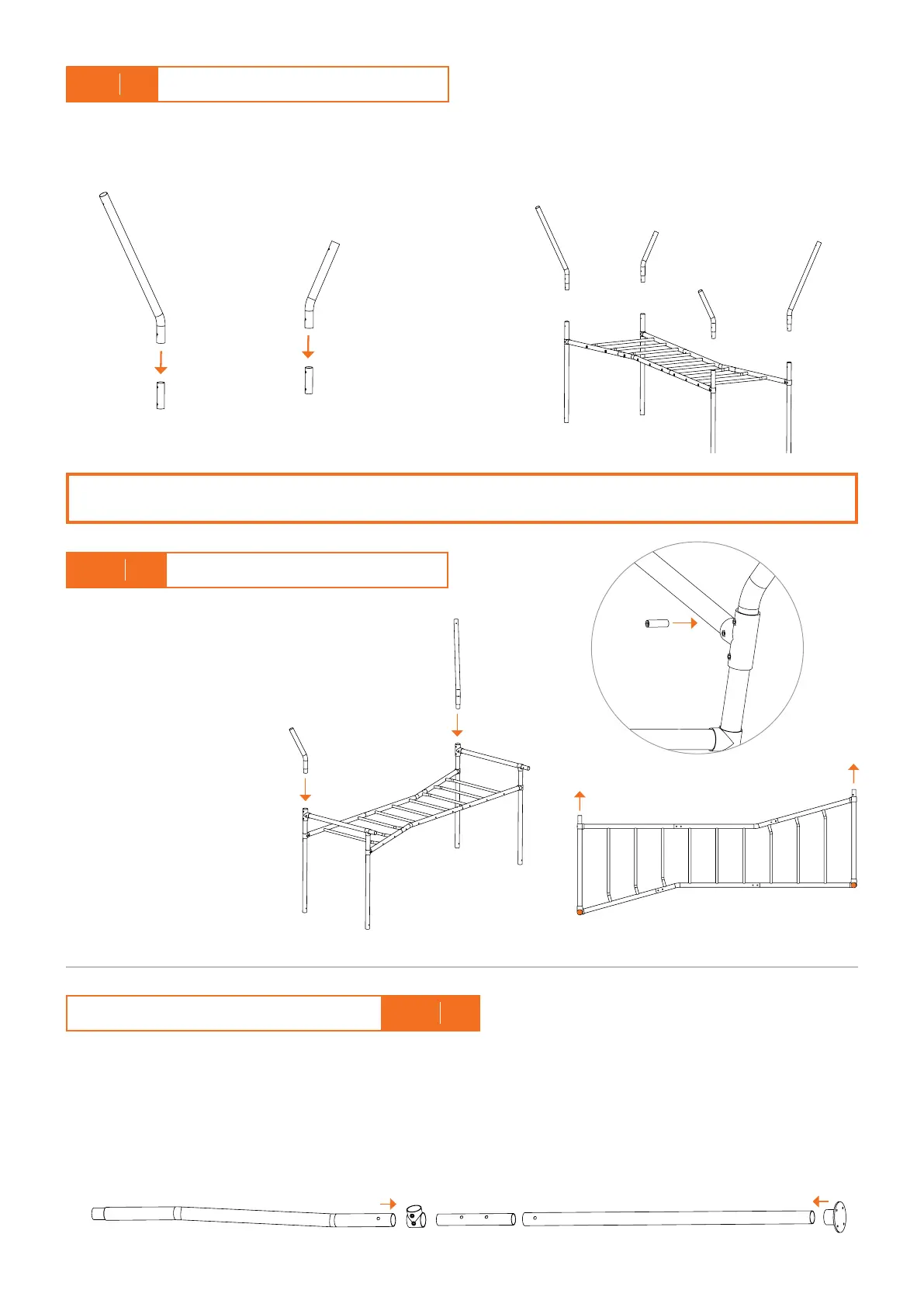

Insert a Joiner Tube into the top of both Lower Outer Tubes, and insert Feet into the bottom.
Note: Use the provided Allan key to align the Joiner Tube.
Insert a T-Joiner into the larger ends of both Upper Outer Tubes.
Connect two pairs of completed parts from 16A and 16B together.
Repeat for the remaining 3 sets of Outer Tubes, Joiner Tubes and Feet.
Insert the Long Shade Tube
and Short Shade Tube as
indicated below.
Important: You must
attach the Shade Tubes
as directed, otherwise the
Shade Cover will be very
difficult to fit.
SHADE COVER – LARGE
15
STEP
Long
Shade
Tube
Long Shade Tube
Short Shade Tube
Small tube ends facing this way
Short
Shade
Tube
LARGE AND EXTRA LARGE
16
STEP
14
STEP
SHADE COVER - MEDIUM
A. B.Insert Shade Joiners into the shorter ends of
each Long and Short Shade Tube.
Insert the completed Shade Joiner and Shade Tube
pairs into the tops of the Upper Frame Tubes, angled
outwards, as shown.
CONTINUE TO STEP 23 FOR MEDIUM
