Introduction
The values must fall within the following restrictions:
Valid range: 5-100 psi
Lowering Pressure must be greater than Lifting Pressure
Lowering and Lifting pressures must diff er by at least 15 psi

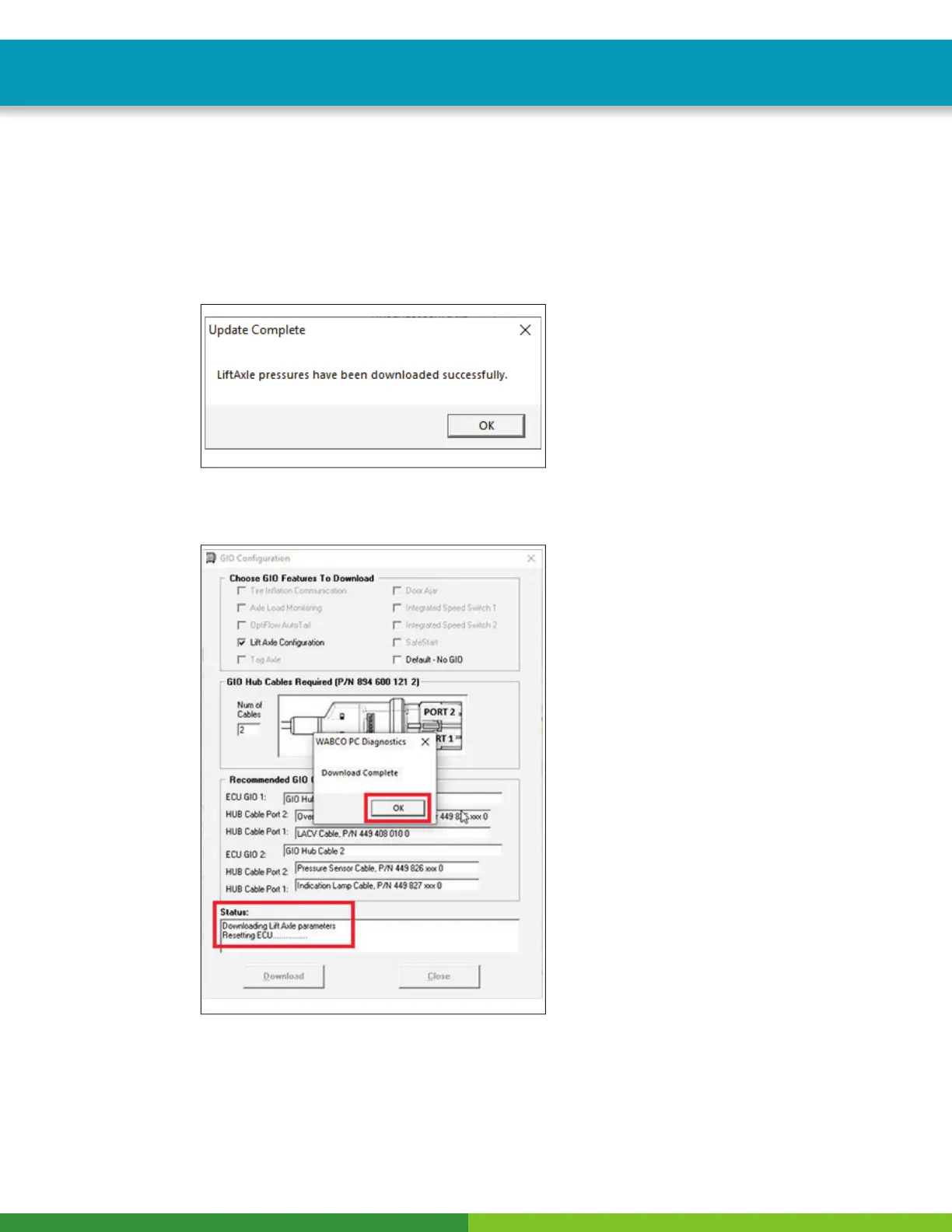

6. The values are validated and programmed when the OK button is pressed. When a confi rmation
message appears, press the OK button to continue. Figure 13.
Fig. 13
4017332a
7. After selecting OK on the Lift/Lowering Pressures window, it will go back to the GIO Confi guration
Window, and the ECU will reset 2 times. Once the resets are complete, a Download Complete window
will pop up. Click OK and the programming is now fi nished. Figure 14.
Fig. 14
4017333a
