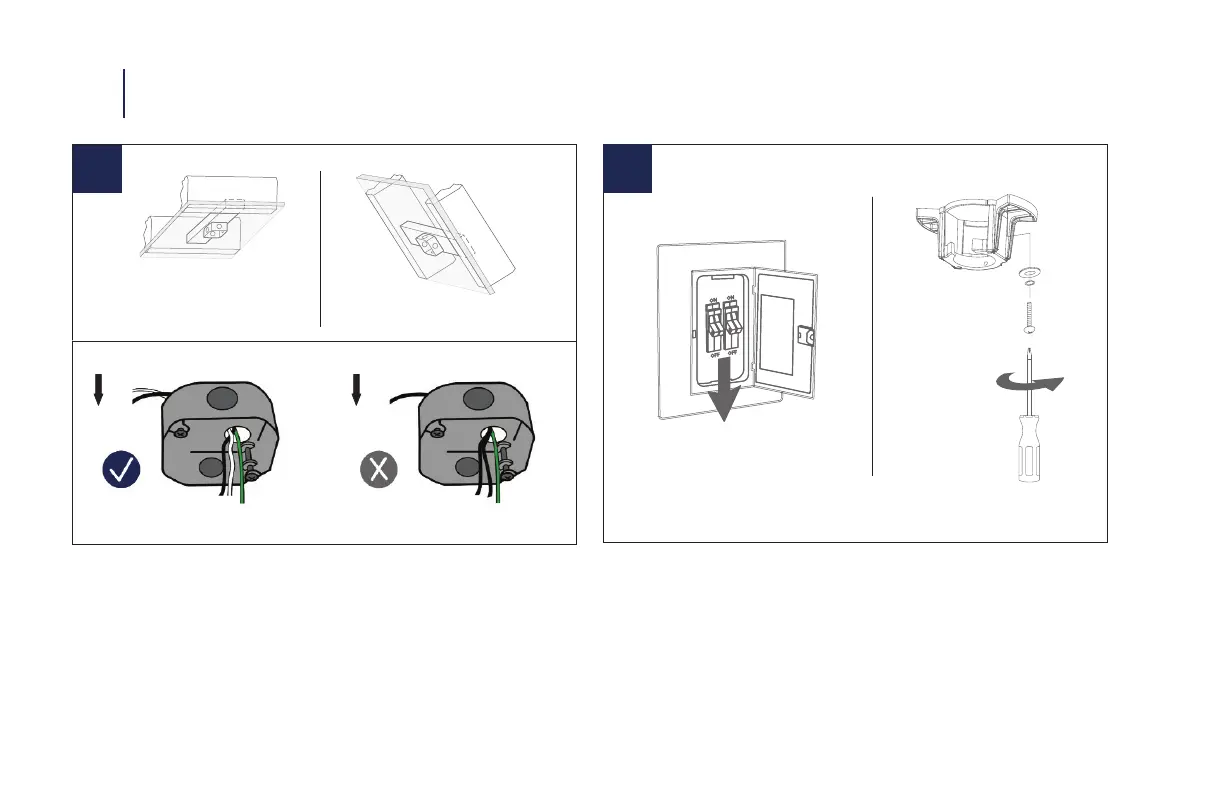

05 MOUNTING OPTIONS INSTALLING THE MOUNTING BRACKET
1. Secure the hanger bracket to the ceiling outlet box using
screws included with your outlet box, lock washers included
with the fan. Use A hardware.
2. Pass supply wires through mounting bracket and secure
to outlet box.
Standard Ceiling Slope Ceiling
Caution: Remember to disconnect
the power at the circuit breaker.
CAUTION: To prevent electrical shock, ensure electricity
has been turned o at the circuit breaker before beginning.
Figure 1 is an example of how to mount the outlet box.
To Switch To Switch
(Hot) (Hot)/
Switch
(Ground) (Ground)
(No Neutral)
(Neutral)
*Bare or
Green
*Bare or
Green
A
A
B
