11F-054L
3

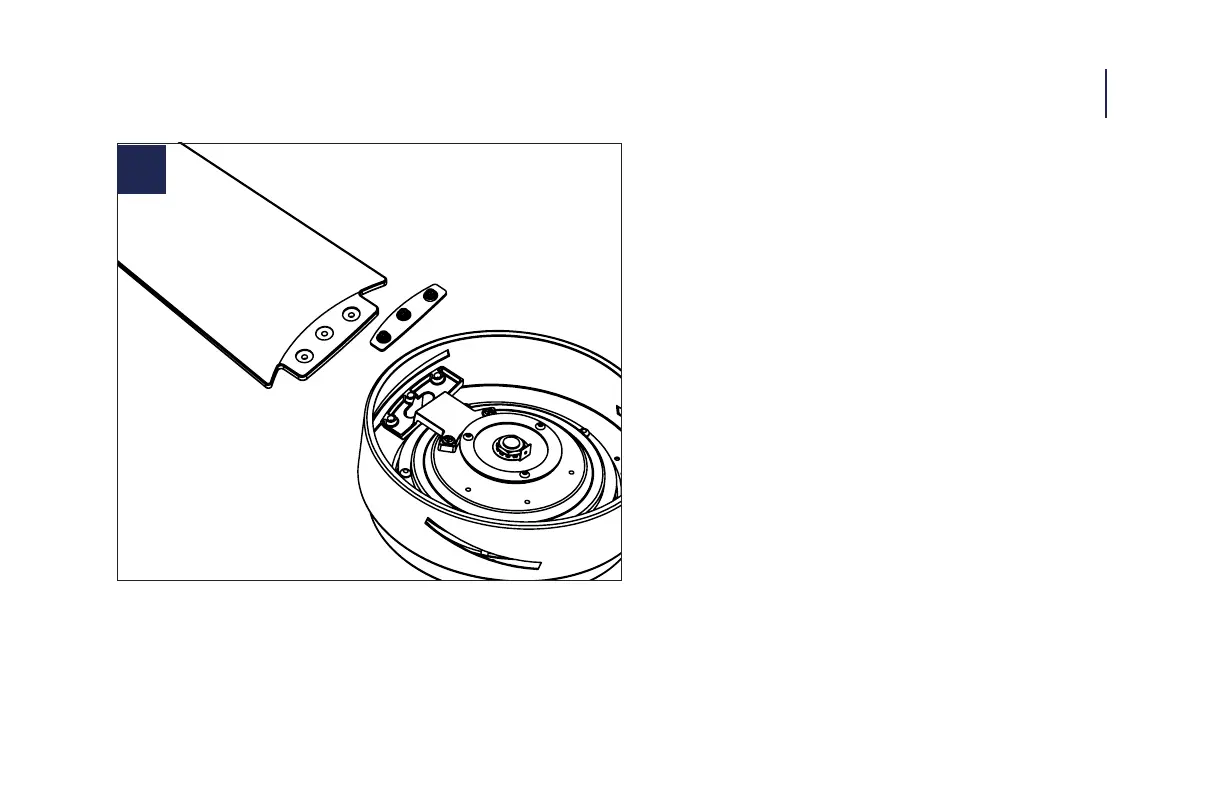

1. Slide blade into motor assembly hole.
2. Secure blade with blade attachment screws, washers, and
blade support plate. Repeat for remaining blades. Use B
hardware.
3. Turn fan around and place on soft cloth to prevent sratches to
the surface
ATTACHING THE FAN BLADES 06
