WAC MOD - Adapter Plate Installation

F-054L
18
16 16
10 INSTALLING THE ADAPTER PLATE
10 11

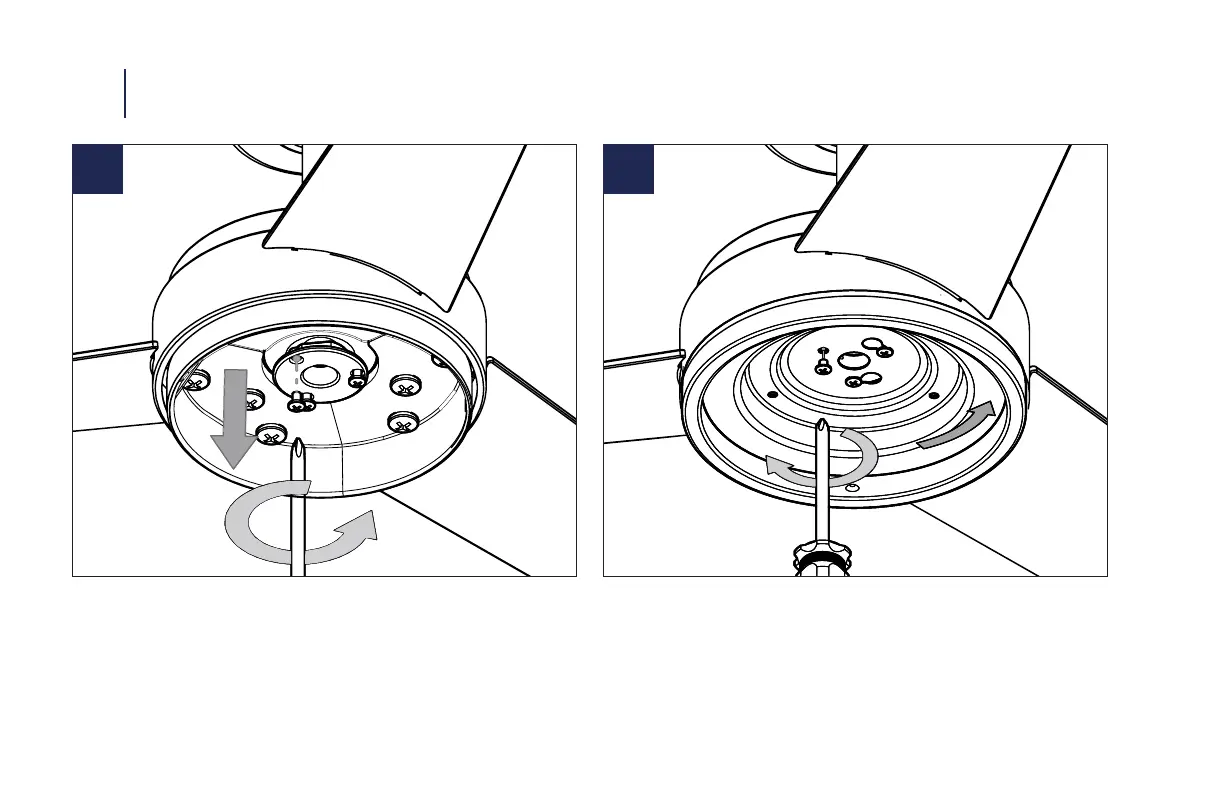

1. Remove 1 of 3 screws from the mounting ring and loosen the
others (do not remove).
1. Twist and lock the adapter plate into place by following the
arrows above.
2. Using the removed screw from the previous step, install the
adapter plate.
3. Tighten the other two screws.
