3-46 OM 25-3503 us – Edition 4.1 * * 2503_3503b330.fm
Operation
Job site with shatter protection
Work range height A: 120 cm (47 in), B: 50 cm (20 in).
Figures 123 and 124 refer to work with a Wacker Neuson hydraulic hammer.
Information!
Working with another attachment can modify the height of the job site.
Assembly
1 Stop and park the machine. Stop the engine.
2 Install/remove shatter protection B from the front and fasten/remove it at the fas-
tening points C with the fastening material supplied.
3 Tighten screws D at fastening points C to 25 Nm (18 ft.lbs).

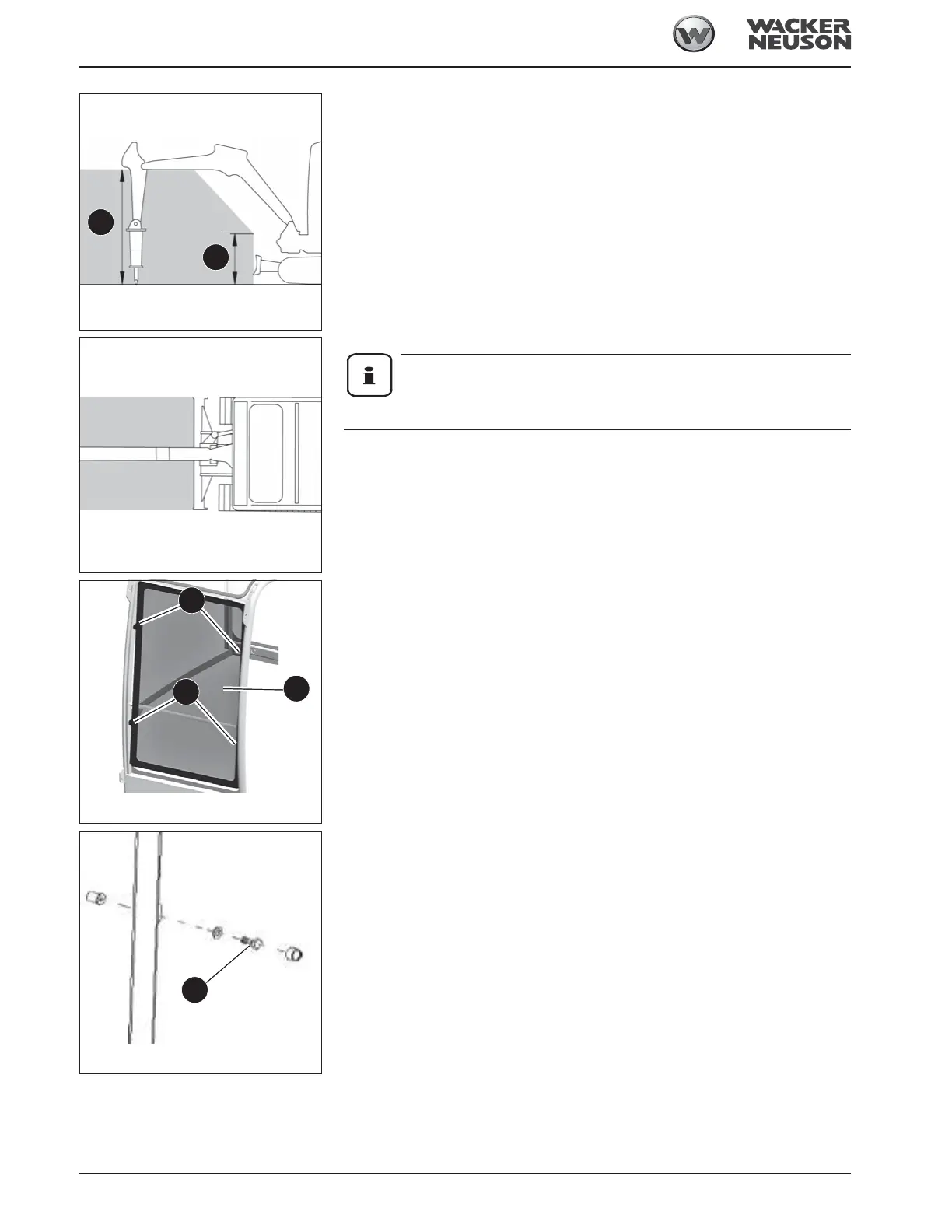

Fig. 123: Job site with shatter protection (symbolic repre-
sentation)
B
A
Fig. 124: Job site with shatter protection (top view/symbolic
representation)
Fig. 125: Installing the shatter protection (symbolic repre-
sentation)
C
C
B
Fig. 126: Installing the shatter protection (detailed view)
D
