OM 25-3503 us – Edition 4.1 * 2503_3503b340.fm 3-99
Operation
Information!
Place the bucket only with minimum pressure on the ground as you remove
the pins. The higher the pressure on the ground, the higher the resistance and
the more difficult it is to remove the pins.
Connection
☞ Remove the covers on connections 1 and 2 on the boom and the Powertilt unit
☞ The following connections are possible:
•3rd control circuit with quick-connect coupling
•Two different connection sizes each
☞ Connection of line between boom 1 and connection 1 on the Powertilt unit
☞ Connection of line between boom 2 and connection 2 on the Powertilt unit
Route the hydraulic line through the duct and fasten it with a clamp.
Information!
In order to avoid possible damage to the lines, check the Powertilt unit in all
positions before putting it into operation.

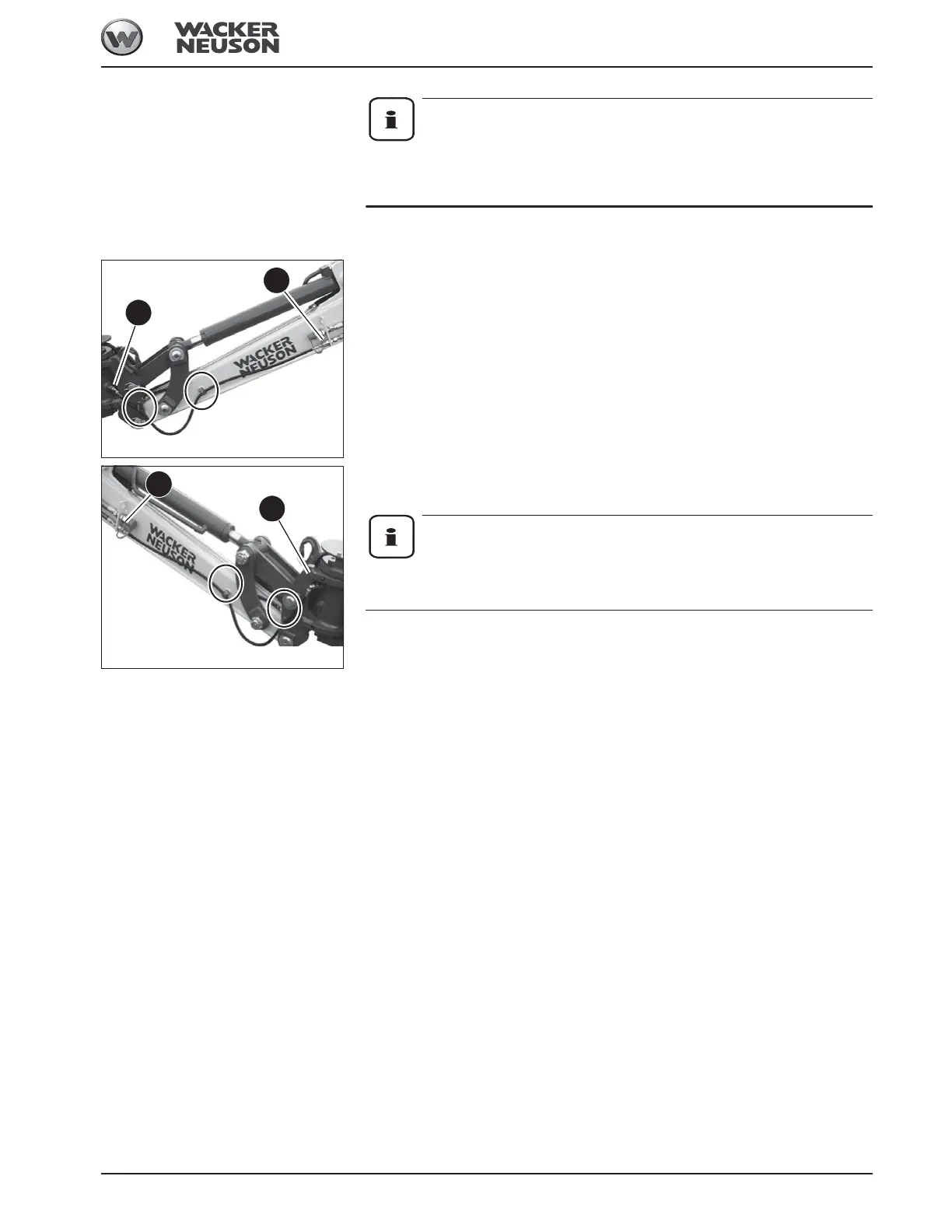

Fig. 231: Connection (left)
1
1
Fig. 232: Connection (right)
2
2
