Operation
3.32 Front window
Crushing hazard when opening the front window!
Can cause serious injury or death.
• Stay clear (extremities, clothing) of the window channel.
• Take care not to hit the front window with your head as you open it!
• Always pull the front window upward with both handles B!
• Always let levers A lock into place on either side in locks F or C!
Information!
Raise the control lever base before opening or closing the front window, in
order to avoid any unintentional operation or movement of the machine!
Open the front window as follows:
• The front window is fitted with handles and small levers on either side
☞ Push levers A upward on either side
☞ Pull the front window upward with handles B
➥ The front window must lock into rails C on either side
☞ Lock levers A on either side in C
☞ Pull levers A to the rear to do this
☞ Check whether both levers A are actually locked in rails C
Lower the front window as follows:
☞ Push levers A forward on either side
☞ Pull the front window downward with handles B
☞ Lock the front window again by means of levers A in lock F
☞ Pull levers A upward to do this
☞ Check whether both levers A are actually locked in rails F

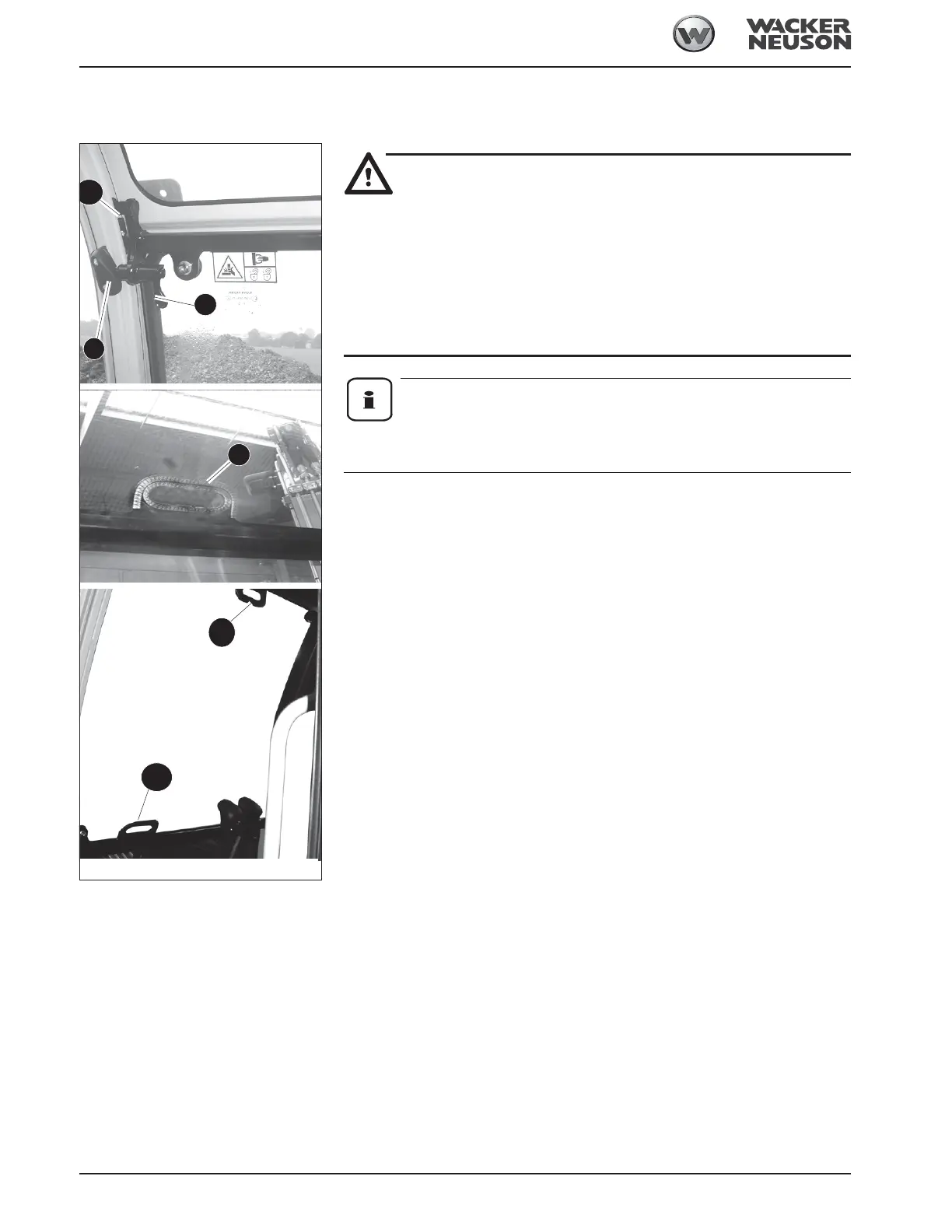

Fig. 139: Front window
A
B
C
F
B
B
