OM 25-3503 us – Edition 4.1 * 2503_3503b410.fm 4-7

Malfunctions

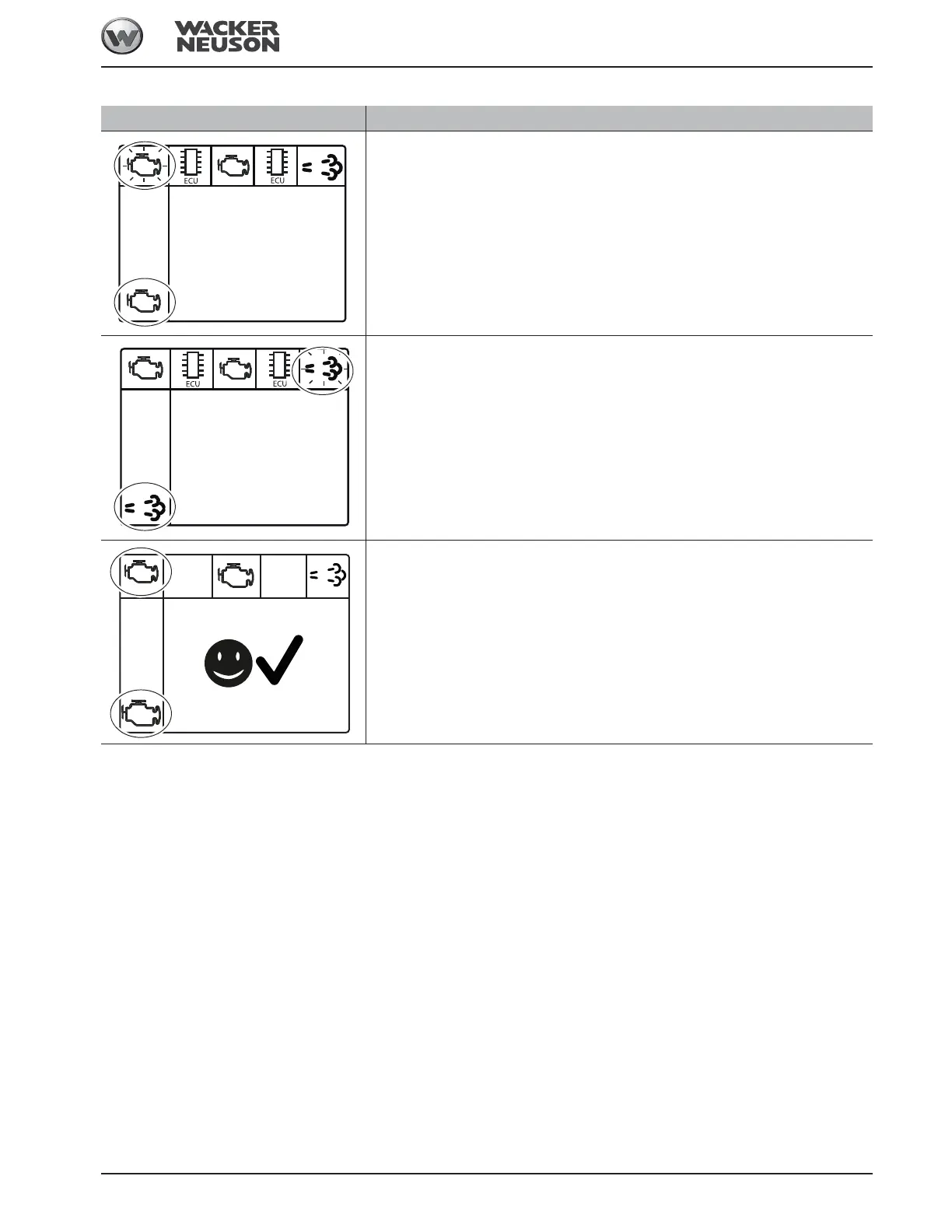

Symbol

Engine error

Indicates engine errors.

Particulate matter catalyst data

Indicates particulate matter catalyst errors.

No error

If there is no error, the marked symbol appears in the service tool “Engine error/machine

status/particulate matter catalyst data”.

The corresponding symbol flashes and is displayed at the bottom in addition.

SPN XXXXXX
