6.4 Lubrication

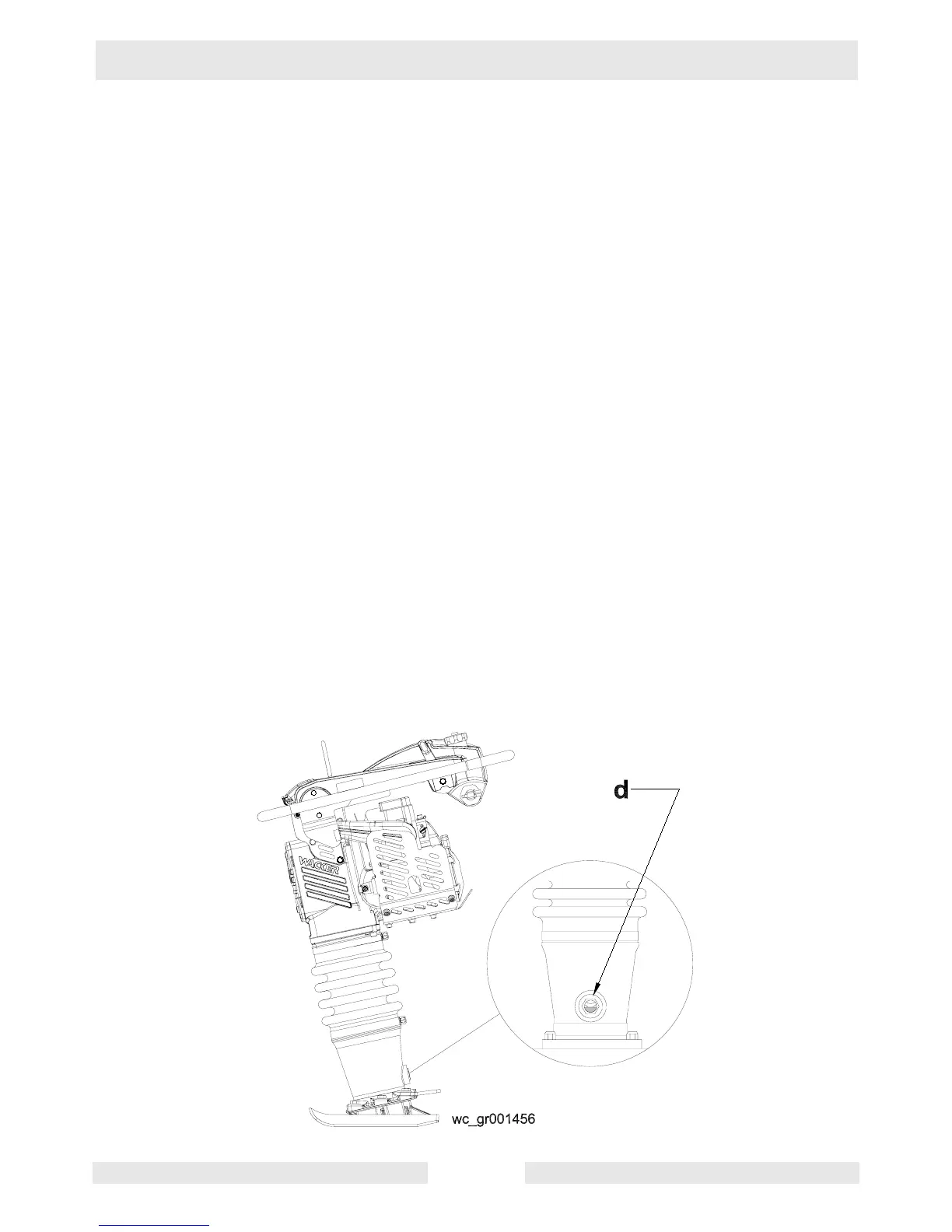

See Graphic: wc_gr001456
Ramming system
Check oil level:
6.4.1 Place the rammer so it is resting on its shoe on a level surface.
6.4.2 Check the oil level through oil sightglass (d). Proper ramming system
lubrication is indicated when approximately 1/2–3/4 of the sightglass is
full.
6.4.3 If the oil is not visible, oil must be added through the sightglass port.
Tilt rammer forward and remove sightglass (d). See Technical Data
for oil quantity and type.
6.4.4 Wrap the sightglass threads with teflon tape. Install the sightglass (d).
Torque to 9 Nm (6 ft.lbs.).
Oil change:
6.4.1 To drain oil, remove sightglass (d) and tilt the machine back until it is
resting on its handle.
Note: In the interests of environmental protection, place a plastic sheet
and a container under the machine to collect any liquid which drains
off. Dispose of this liquid in accordance with environmental protection
legislation.
6.4.2 Remove sightglass (d) and fill with oil. See Technical Data for oil
quantity and type. Wrap the sightglass threads with teflon tape. Install
the sightglass (d). Torque to 9 Nm (6 ft.lbs.).

Wacker Neuson BS 60-4 Specifications

General

Engine Manufacturer	Honda
Displacement	163 cm³
Operating Weight	66 kg
Percussion Rate	700 blows/min
Engine	Honda GX 160
Stroke	60 mm
Engine Type	4-stroke
Fuel Tank Capacity	3.0 liters
