Crankcase Rammer Repair
112 wc_tx001548gb.fm

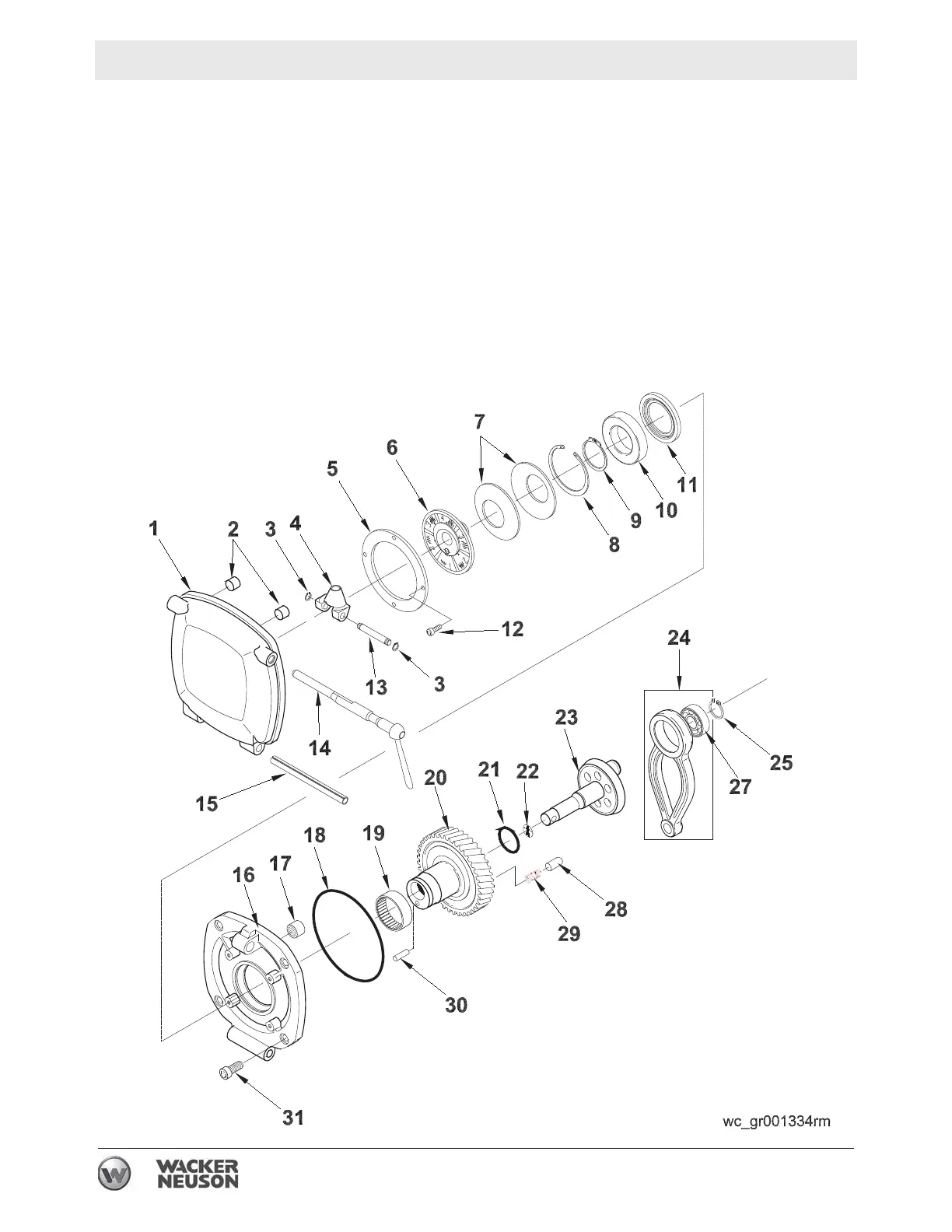

6.2.13 The crankgear needle bearing (19), oil seal (11), and ball bearing (10)
remain intact in the bearing mount.
• Examine the needle bearings for wear.
• If damaged, replace the needle bearings by removing the large retain-
ing ring (8) holding the ball bearing to the bearing mount and press
out the needle bearings and seal.
• Replace the needle bearings and oil seal together.
6.2.14 Remove the O-ring (18) and discard it.
6.2.15 The clutch drum needle bearing (17) will remain intact in the bearing
mount. Inspect it for wear and if damaged, remove and replace it.
