Maintenance work

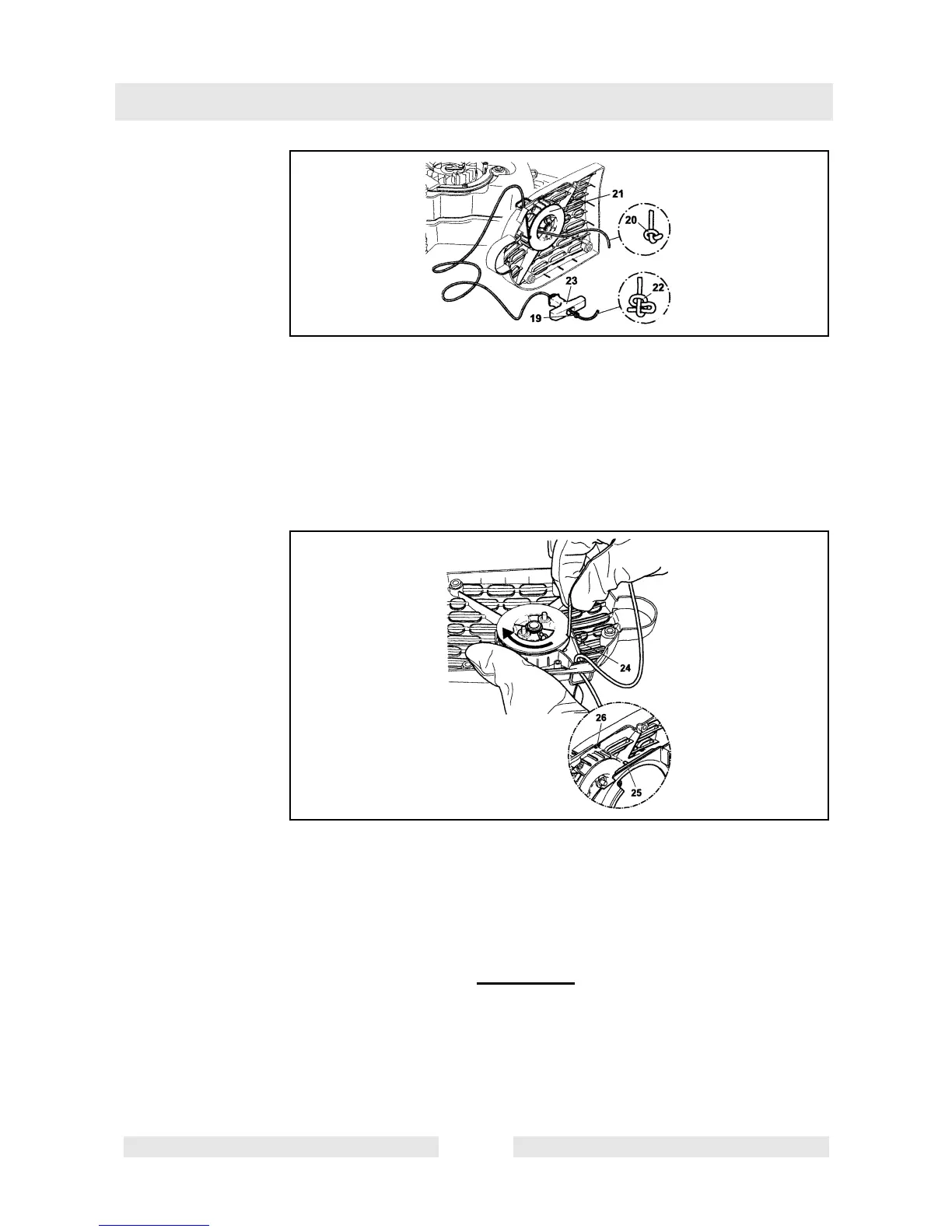

Feed in new rope with a diameter of 4.0 mm (0.16") and a length of
1,000 mm (40"), as in the illustration (do not forget the disc (19)) and
knot both ends.
Pull the knot (20) into the rope drum (21).
Notice: Neither the knot nor the end of rope should extend beyond the
surface of the rope drum.
Pull the knot (22) into the recoil starter handle (23).
Pass the rope through the recess (24) on the rope drum and, together
with the rope, turn the rope drum twice in the direction of the arrow.
Hold the rope drum firmly with your left hand, untwist the rope with your
right hand, pull the rope taut and hold it tightly.
Carefully release the rope drum. The spring tension will cause the rope
drum to wind up the rope.
Repeat the procedure three times. Now the recoil starter handle
should now be in the upright position on the valve housing.
NOTE: When the starter rope has been fully extended, it must be pos-
sible to continue turning the rope drum at least a quarter of a turn
against the spring tension.
