5 Operation
Working with a hydraulic hammer
In order to avoid damage to the machine or hydraulic hammer, observe
the following points:
► Observe the Operator’s Manual of the hydraulic hammer.
► Do not hammer horizontally or upward.
► Do not use the hammer to raise loads.
► Do not hit the hammer against rocks, concrete, etc..
► Do not hammer in the same spot uninterruptedly for more than 15
seconds.
► Do not raise the machine with the boom.
► Do not work with fully extended cylinders or arm system. Do not pivot
the Powertilt unit beyond 30° during breaker operation, otherwise the
load on the boom increases tremendously.
► Stop machine operation immediately if a hydraulic hose moves back
and forth in an unusual manner. The pressure accumulator could be
malfunctioning. Contact a Wacker Neuson service center and have the
malfunction rectified immediately.
► Do not use the impact force of the attachment to perform demolition
work. Broken or falling pieces can cause damage to the equipment.

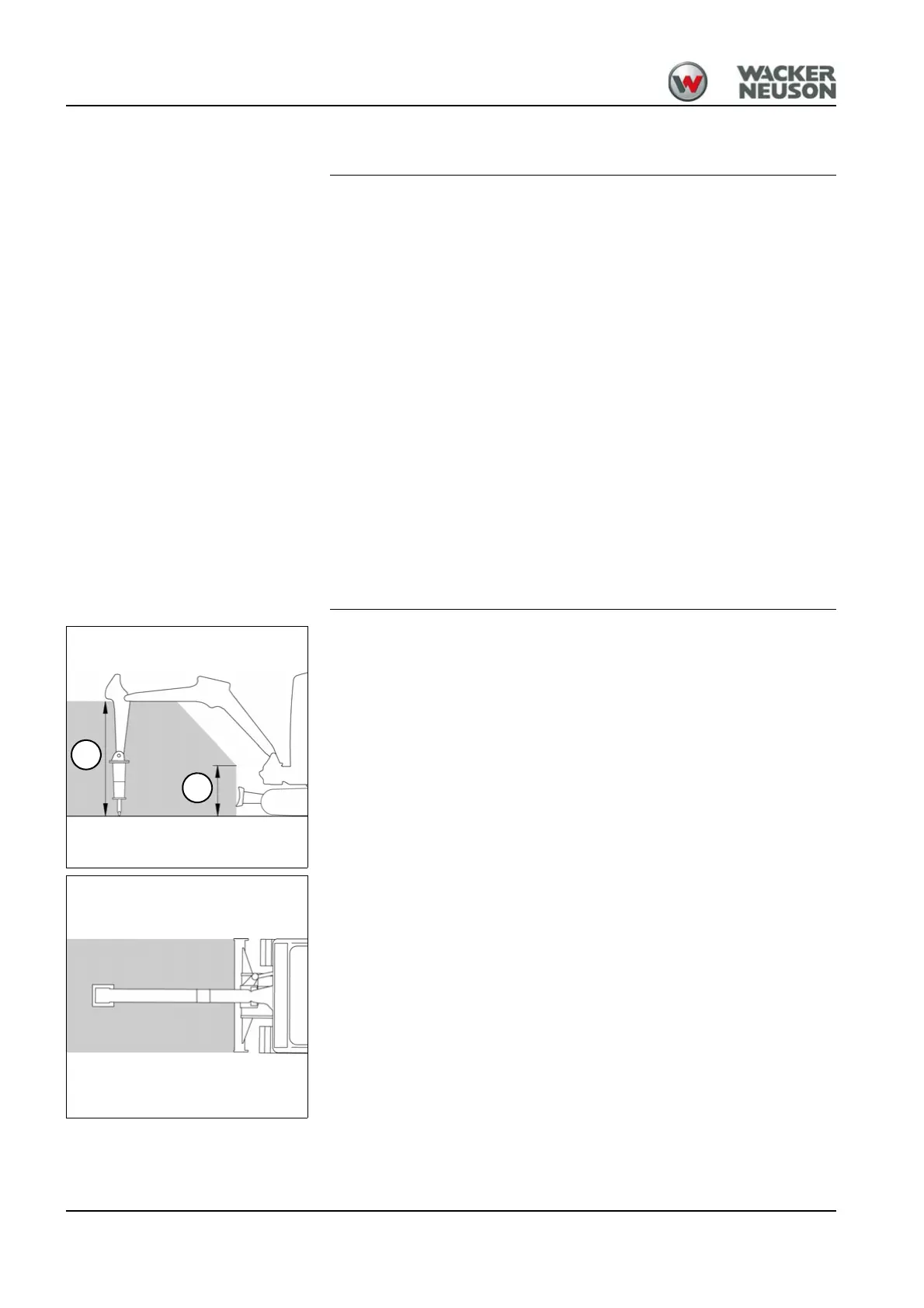

Work range
Work range height A: 120 cm (47 in), B: 50 cm (20 in)
Figures 104 and 105 refer to work with a Wacker Neuson hydraulic
hammer.
Working with another tool can result in a different work range.
Fig. 104 (symbolic representation)
B
A
45°
Fig. 105 (symbolic representation)
