5-24 BA E16 en* 1.0 * E16_10_510.fm
5 Operation
4. Turn the upper carriage so that the boom is 90° to the travel gear.
5. Position the boom as shown in Fig. 155.
6. Stop the engine, remove the starting key and carry it with you.
7. Raise the control lever base.
8. Wait one minute.
9. Put a measuring rod A against the attachment.
10.Wait one minute.
➥ If the attachment does not move from the measuring rod:
➥ Machine is ready for operation.
➥ If the attachment moves from the measuring rod:
➥ Stop operation immediately.
➥ Contact a Wacker Neuson service center and have the malfunction
rectified.

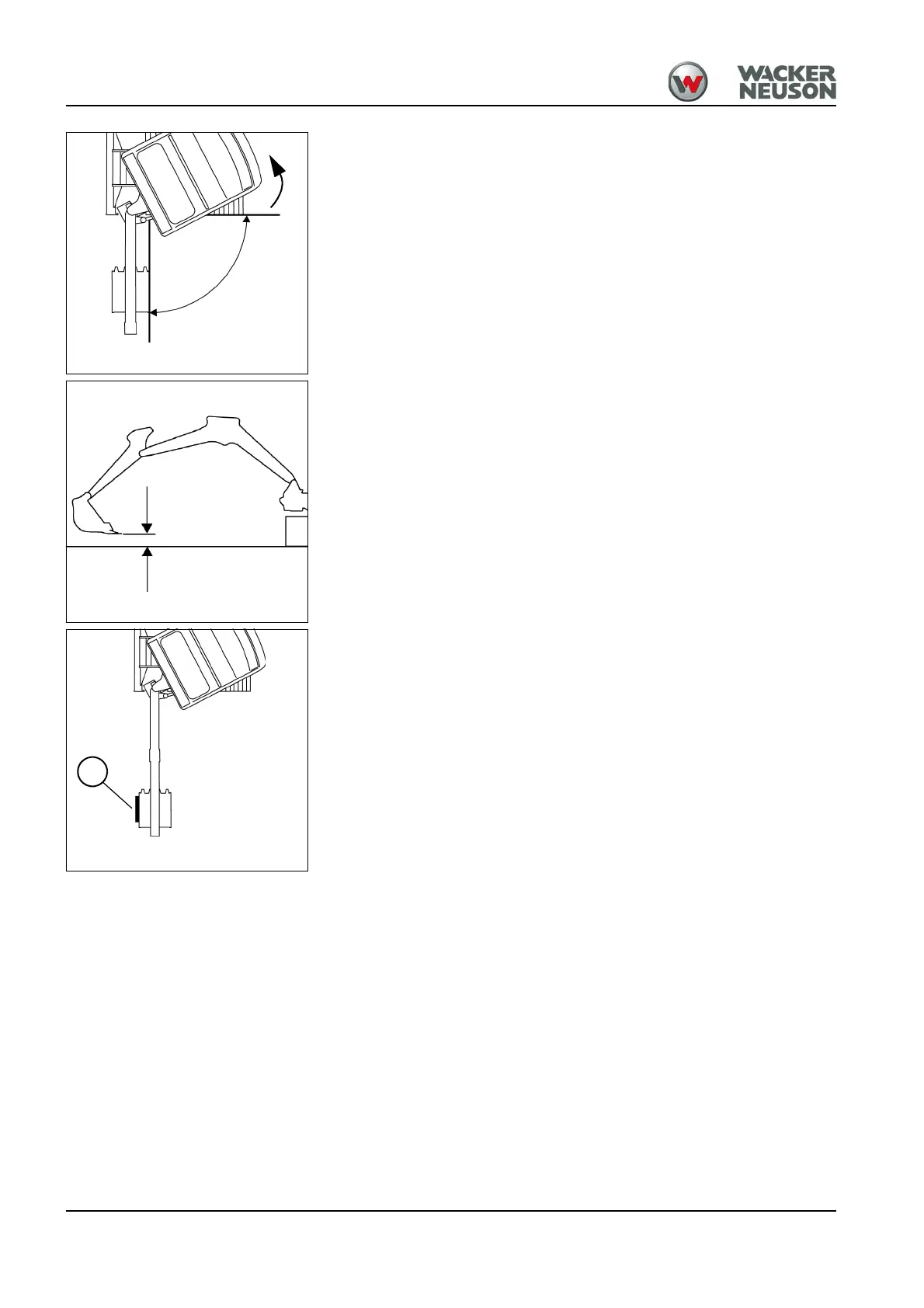

Fig. 154 (symbolic representation)
9
0°
Fig. 155 (symbolic representation)
10 cm (4 in)
Fig. 156 (symbolic representation)
A
