Wacker Neuson E16-02 User Manual

5-54 BA E16 en* 1.0 * E16_10_510.fm
5 Operation

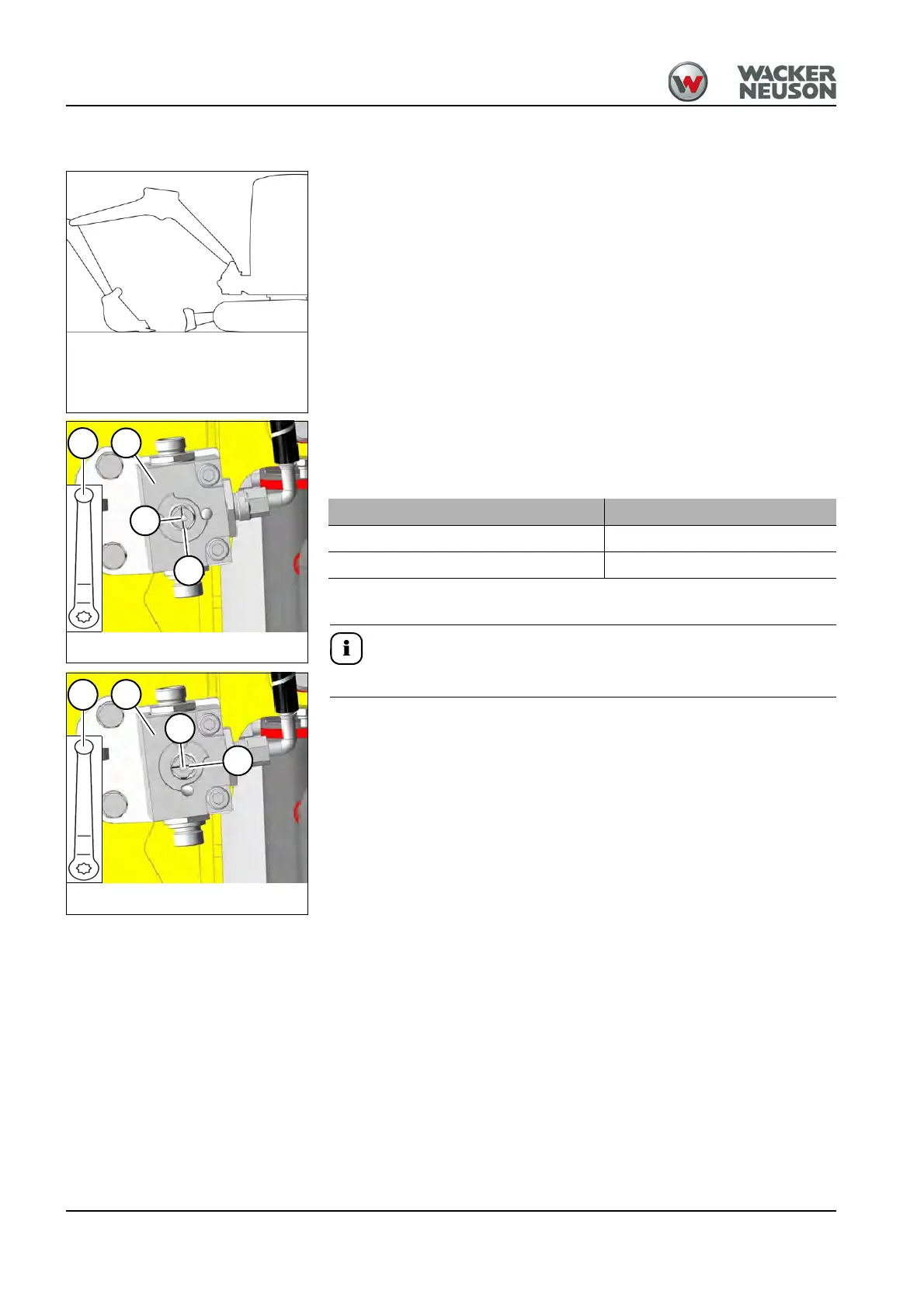

Hydraulic thumb control circuit (option)
The change-over takes place on the left and right at the end of the stick.
Position the arm system straight ahead at the center of the vehicle
(Fig. 220).
Lower the boom and the stabilizer blade to the ground.
Setting the hydraulic thumb:
Bring the ball-type cock A with lever B into the desired position to the left
and right on the stick.
Information
The lever must be removed before operation.
The operation occurs via the right joystick – see chapter “ AUX I” on
page 5-30
Fig. 220 (Symbol representation)
Fig. 221
1
A
B
C
Position of the slot C Operating
1 AUX I
2 Hydraulic thumb
Fig. 222
2
A
B
C
