BA E16 en* 1.0 * E16_10_400.fm 4-29
Putting into operation 4

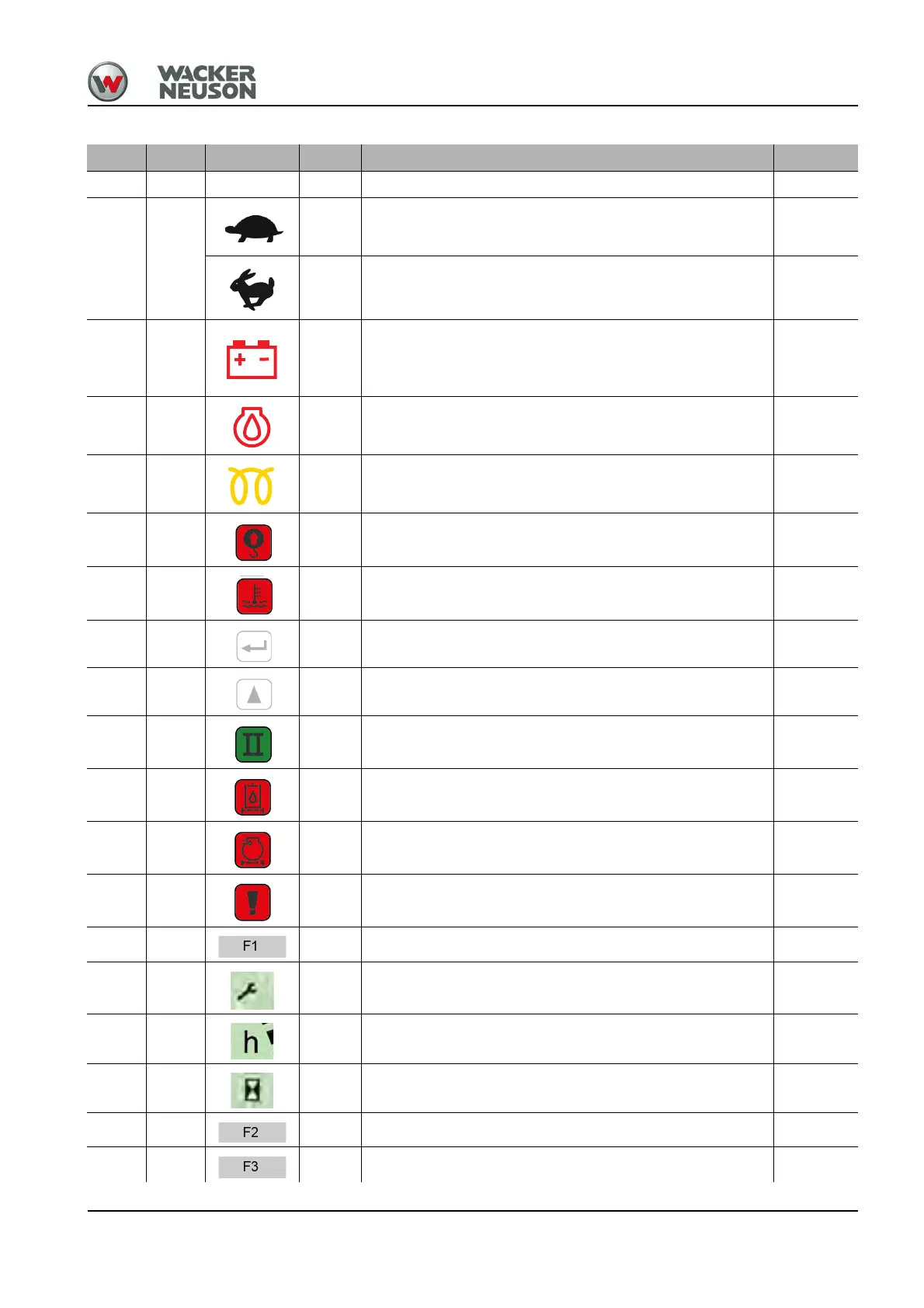

Tier III Tier IV Symbol Color Designation
131 -- -- Display element/multifunctional display 4-28
245
-- Speed range 1 5-4
--
Speed range 2
Tier III: Telltale light illuminates green when the speed 2 is
active.
5-4
337 Red Charge indicator light 8-2
440 Red Engine oil pressure 8-2
539 Yellow Preheating 4-39
6-- Red Safe load indicator light 5-35
7-- Red Coolant temperature 8-2
8-- -- For Wacker Neuson service center --
9-- -- Hour meter/maintenance meter changeover 4-34
10 -- Green Not assigned --
11 -- Red Hydraulic oil filter monitoring 8-2
12 -- Red Air filter monitoring 8-2
13 -- Red Not assigned --
-- 32 -- F1 (operating state indicator) 4-32
14 -- -- Maintenance meter 4-32
15 -- -- Daily hours of operation 4-32
16 -- -- Operating hours 4-32
-- 33 -- F2 (maintenance meter, engine operation mode) 4-32
-- 34 -- F3 (time, automatic engine speed setting) 4-32
