EHB 11 Operation
29

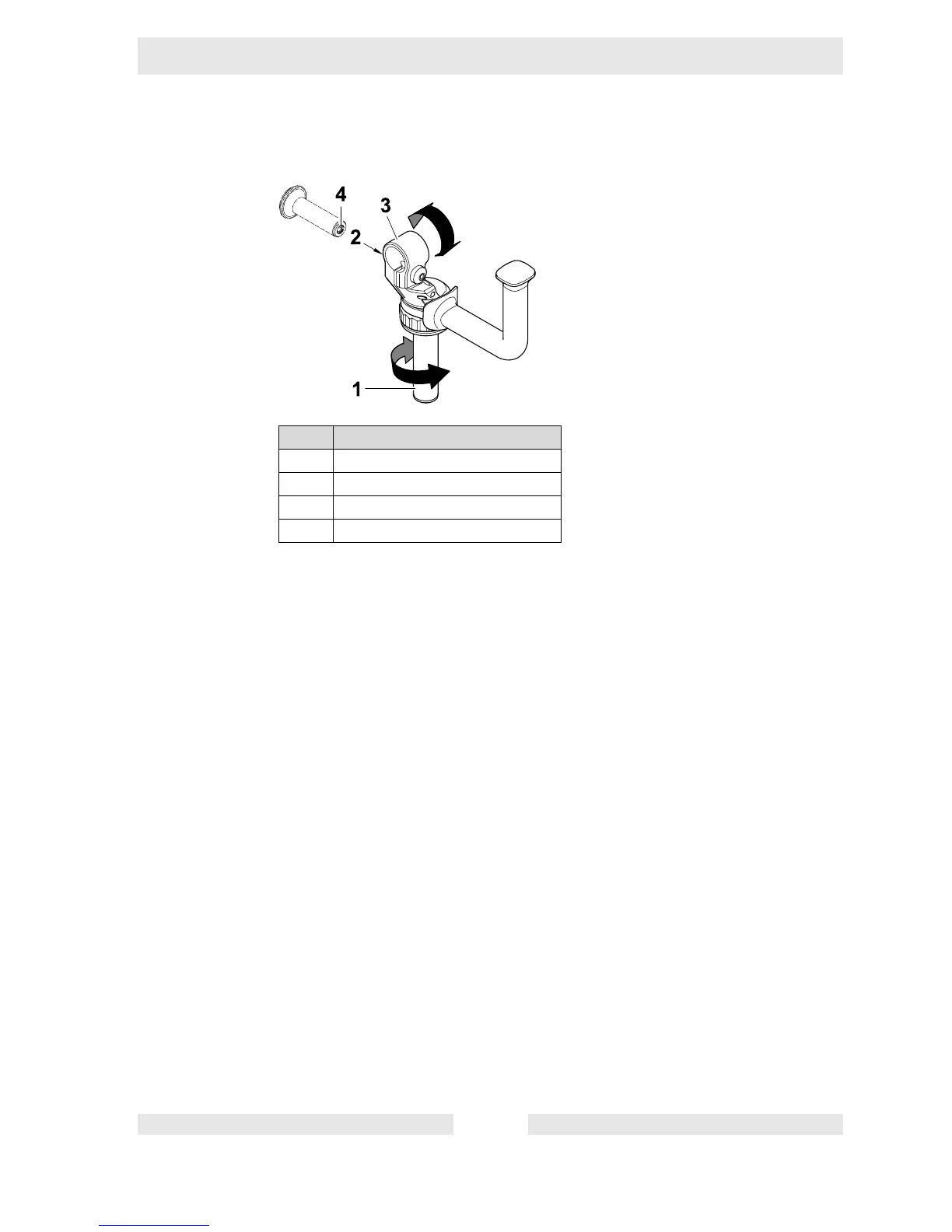

Swiveling the supplementary handle
1. Remove the radial handle by turning it counterclockwise.
2. Use the Allen wrench integrated into the radial handle to loosen the hexago-
nal bolt at the clamping piece.
3. Swivel supplementary handle to desired position.
4. Tighten the hexagonal bolt again.
5. Attach radial handle to desired position (supplementary handle or housing)
using screw.
Item Designation
1 Radial handle
2 Hexagonal bolt
3 Clamping piece
4 Allen wrench
