3-18 OM ET18/20/24 us 1.3 * et18_20_24e300.fm
3

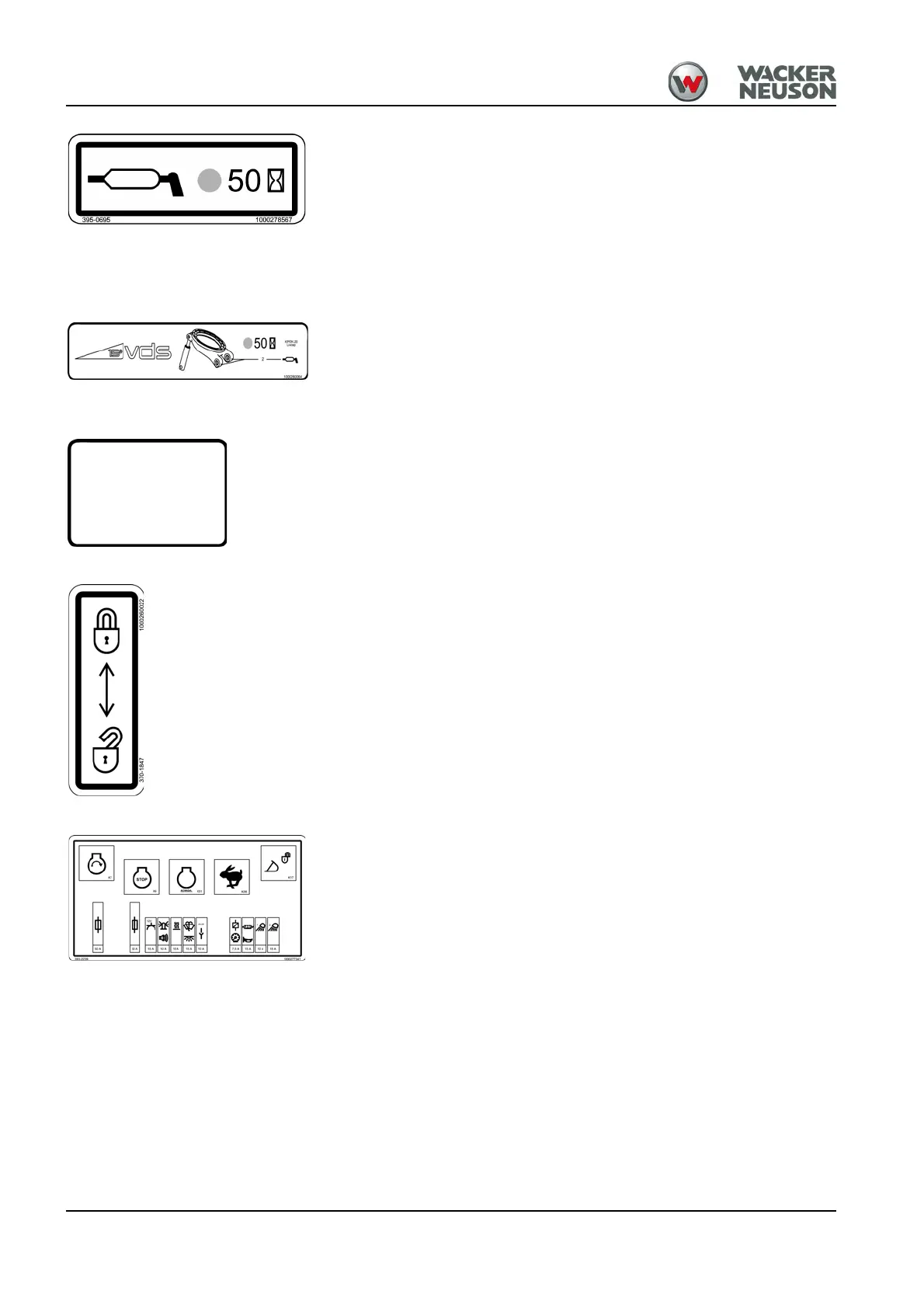

Meaning
Indicates the interval at a which lubrication point must be lubricated.
Lubrication points/grease nipples marked green mean: lubrication every
50 hours or once a week.
Lubrication points/grease nipples marked blue mean: lubrication every 10
hours or daily.
Position
On the upper carriage on the right in traveling direction.
Meaning (option)
Indicates the lubrication points of the VDS tilt console.
Position
Upper part of front window.
Meaning
Reflector at the rear.
Position
On either side of the machine at the rear.
Meaning
This label indicates the position in which the control levers are locked.
Position
Canopy: on the left and right-hand control lever bases.
Cab: on the left-hand control lever base (standard) and on the right-hand
control lever base (option).
Meaning
Fuses and relays.
Position
Behind the left-hand side cover, outside on the cover.
Fig. 35: Lubrication point
Fig. 36: VDS maintenance plan
