3-20 OM ET18/20/24 us 1.3 * et18_20_24e300.fm
3
Meaning (ET 18/ET 20)
This label describes the functions of the pedals and control levers
(Operating Pattern A – ISO controls (Europe) and Operating Pattern A).
Check before starting the machine the operating pattern that has been
chosen.
– see “ISO/SAE changeover” on page 3-19
Position
On the roof window on right-hand side in traveling direction.

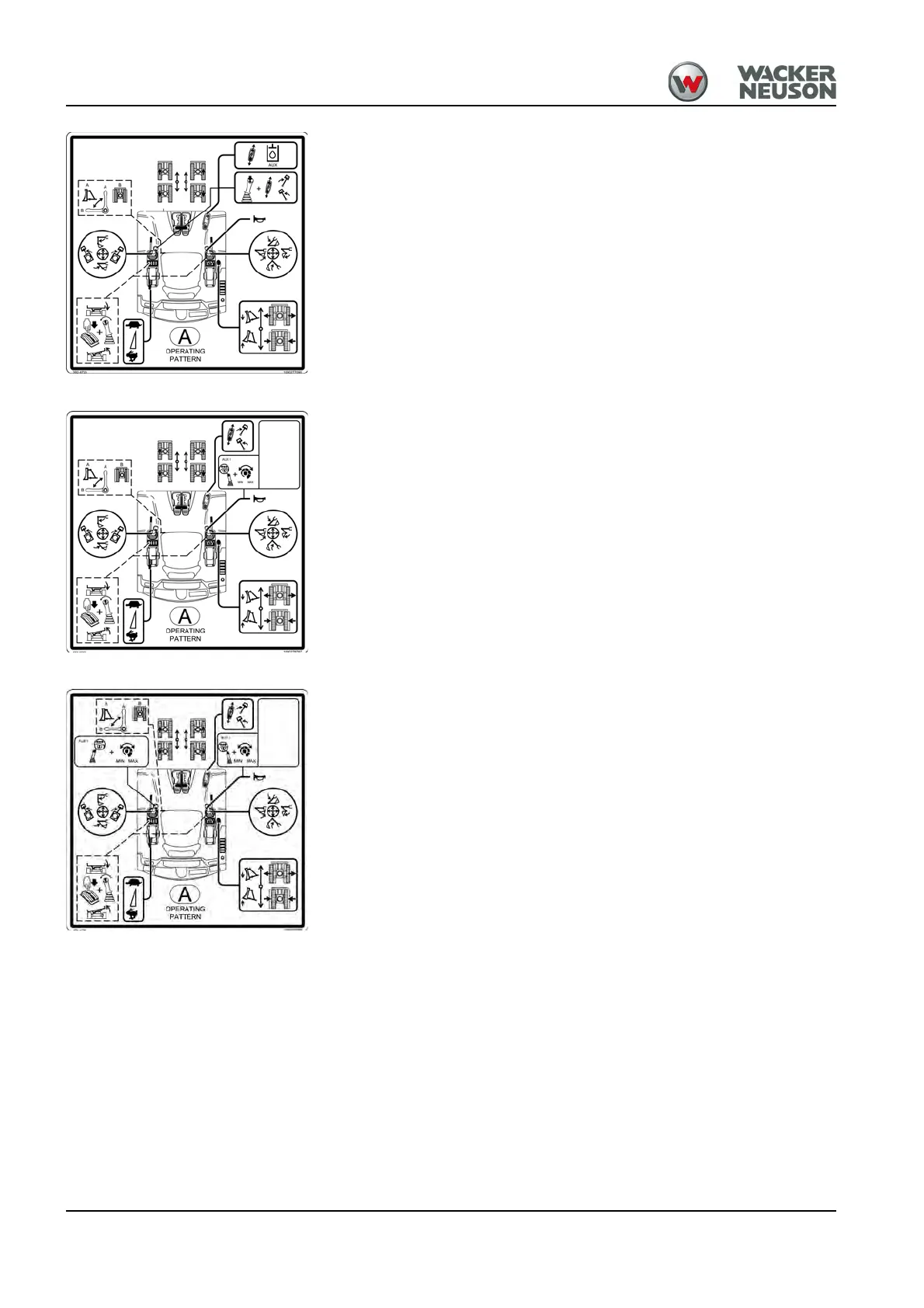

Fig. 42: Function ET 18/ET 20 standard
Fig. 43: Function ET 18/ET 20 auxiliary
hydraulics/proportional controls
Fig. 44: Function ET 18/ET 20 Powertilt/3rd
control circuit
